Milk powder mixing is a critical process in the production of dairy products, infant formulas, and nutritional supplements. The powder mixer machine is the key to get the quality milk powder product. As the China powder mixer manufacturer, we fully understand that different customers have varying requirements regarding hygiene standards, mixing efficiency, and investment budgets, etc. In this overview, we will present three types of milk powder mixer machine options below for your consideration.
These three types of powder mixer machine are the V-type mixer, the double-cone mixer, and the ribbon mixer. We will provide a detailed analysis of the suitable applications for each device. You will see the evaluations of them across various dimensions such as sanitary requirements, mixing efficiency, filling ratio, and ease of cleaning, etc.
The V type mixer is one of the most widely recognized device in the field of powder mixing. Its V-shaped vessel features a unique design; by rotating the container, it repeatedly divides and recombines the materials.
No Internal Agitation Mechanism: The standard model contains absolutely no internal components such as mixing paddles or ribbon blades.
Mirror-Polished Inner Walls: The interior surface of the vessel is polished to a mirror finish.
Zero Contamination Risk: The powder remains completely free from contamination by the equipment itself throughout the mixing process.
Loading Capacity: Up to approximately 50%
Internal Components: None (Standard type); Optional agitator available
Inner Wall Finish: Mirror polishing
Material Quality: Stainless steel 304/316L; Food-Grade Safe
Highest Sanitary Rating: Ideal for demanding applications, such as milk powder, protein powder, etc.
Minimal Residue: Ensure complete discharge, minimizing the risk of cross-contamination between batches.
High Cost-Effectiveness: Feature a simple structure and a relatively affordable price point.

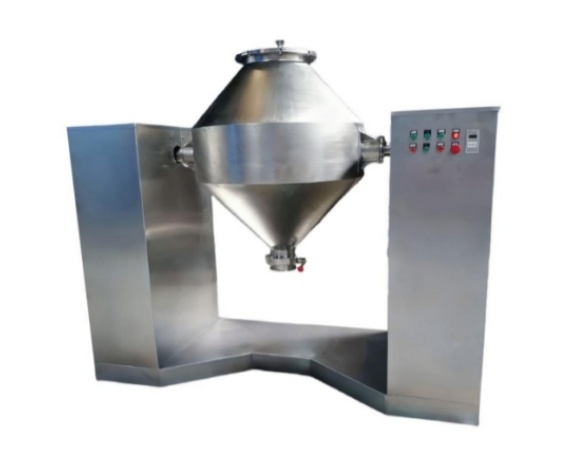

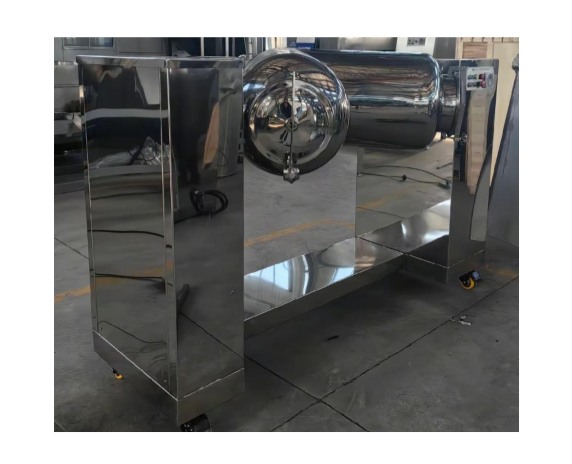

The double-cone mixer features a double-conical vessel design, tapered at both ends with a cylindrical section in the middle. As the container rotates, the materials flow back and forth between the conical sections.
Dual Design Options: Standard high-hygiene design, as well as an option that combines both high efficiency and hygiene.
Interior Polishing: Mirror-polished finish, clean and smooth.
Discharge Method: By bottom valve, manually or pneumatically
High Hygiene Standards: Similar as V shape mixer, without internal mixing components, thereby minimizing the risk of contamination.
Thorough Discharge: Utilize a double-cone structure that enables the complete discharge of materials.
Uniform Mixing: Facilitate a reciprocating flow between the conical sections, resulting in highly effective mixing performance.
Mixing Ribbon: Enhance mixing effectiveness and reduce mixing time.
Semi-Open Drum Design: The mixing drum can be partially opened, making cleaning exceptionally convenient.
Increased Filling Ratio: The maximum filling ratio rises from 50% to 80%.

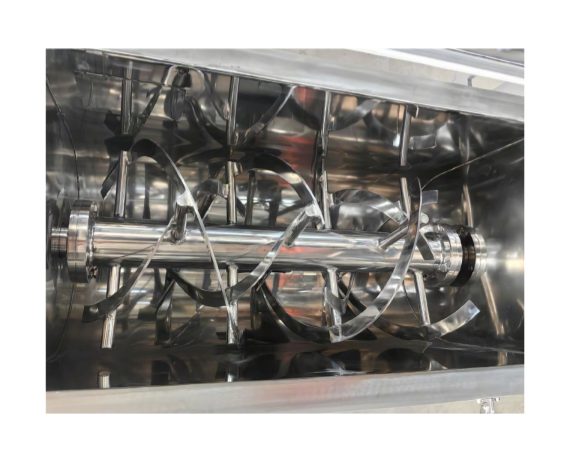

The ribbon mixer features a structure comprising a U-shaped vessel and internal double-layer ribbons, achieving highly efficient mixing through the convective motion of the inner and outer ribbons.
Excellent Sealing: Feature a fully enclosed design, resulting in virtually no dust leakage.
Wide Applicability: Suitable for use with a broad range of materials, including milk powder, nutritional powders, premixes, and additives.
Pricing: Compared to the other two standard type powder mixers, the ribbon mixer offers the highest mixing efficiency, and its price is correspondingly higher.
Loading Coefficient: Up to 60%
Internal Components: Built-in ribbon blades
Mixing Method: Forced convective mixing
Optional Configuration: Spraying device
High Mixing Efficiency: Smaller models can complete a batch in just 5–10 minutes.
High Loading Capacity: The loading coefficient can reach up to 60%, allowing for a large processing volume per batch.
Optional Spraying System: A spraying function can be customized for applications requiring the addition of liquid nutrients or flavorings.
Each of the milk powder mixer machine offers its own distinct advantages. The V-type mixer boasts the highest sanitary rating, making it ideal for applications with stringent hygiene requirements. The standard double-cone mixer strikes an excellent balance between cost-effectiveness and sanitary performance. The upgraded double-cone model combines both high efficiency and superior hygiene. Finally, the ribbon mixer delivers the powerful mixing efficiency, making it the optimal choice for large-scale production. To assist you in selecting the right equipment, we have compiled the following six key points for a comprehensive comparative analysis. You can choose the solution that best suits your specific needs. Of course, should you require further details or personalized selection advice, please do not hesitate to contact Salinovate Team.
Sanitary Requirements
For strict hygiene standards, opt for the standard type V mixer and double cone mixer.
Mixing Efficiency
To get high efficiency, select a ribbon mixer or the upgraded double cone mixer.
Ease of Cleaning
For frequent changeovers and easy cleaning, choose the V type and double cone type.
Budget Constraints
For limited budgets, select the V type or double cone type (standard version).
Workshop Space
If vertical clearance is restricted, choose a horizontal ribbon mixer.
Future Expansion
To ensure scalability for future production growth, consider the upgraded double cone mixer or ribbon mixer.
