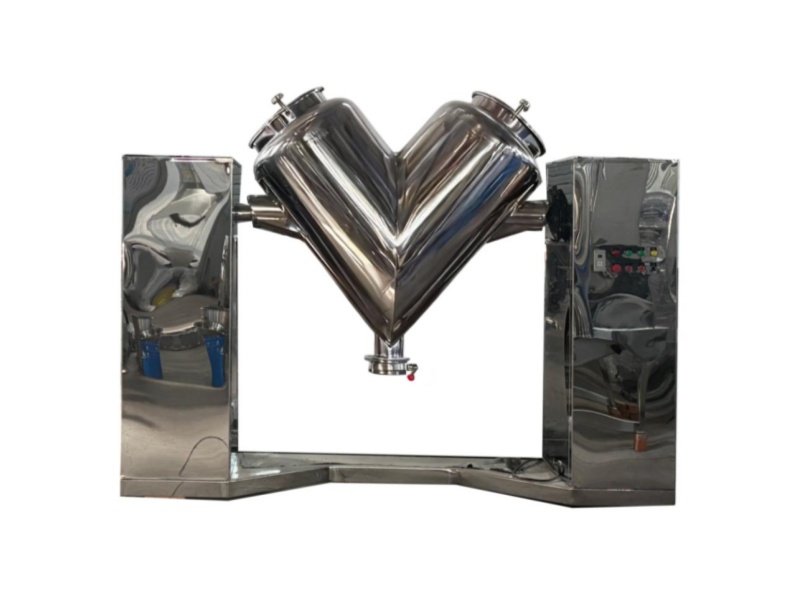

Stainless Steel V Mixer Machine for Powder

I. Product Application Overview

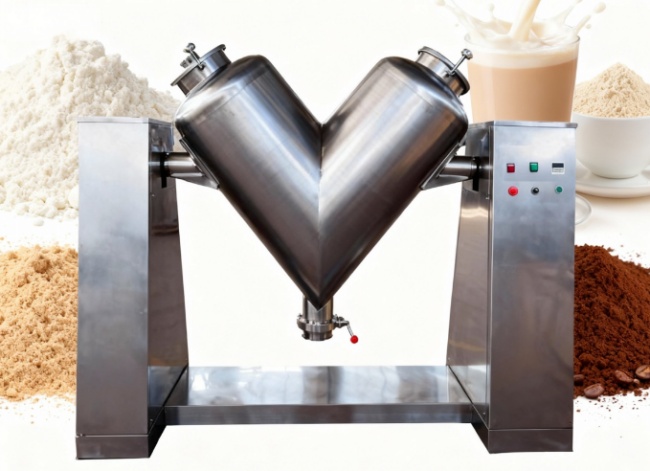

Q1: What is a V mixer machine? What is it mainly used for mixing in the food industry?

A1: It is a mixer that uses a rotating V-shaped barrel to continuously separate and mix powders. This mixer machine can achieve rapid and uniform mixing. In the food industry, it is widely used for:

Seasoning Powders: Pepper powder, chili powder, curry powder, soup base powder.

Solid Beverages: Milk tea powder, protein powder, soy milk powder, instant coffee powder.

Additives/Ingredients: Adding vitamins, minerals, and other nutritional fortifiers evenly to base powders (such as flour).

Q2: Compared to other mixers, what are the core advantages of a V mixer in food applications?

A2: High Mixing Uniformity:The unique V-shaped structure allows powder to continuously diffuse and shear under gravity, minimizing dead zones.

Clean and Residue-Free: Smooth inner wall, no internal stirring paddles, thorough unloading, easy cleaning, and compliance with food hygiene standards.

Gentle Mixing: Minimal damage to the physical structure of fragile crystals or loose powders (such as milk powder).

II. Common Problems and Solutions

Q3: What if the material separates or becomes uneven after mixing?

A3: Reason 1: The material's bulk density or particle size varies too much.

Solution: Try to adjust the mixing speed or time to find the optimal parameters. Usually before the order, we will confirm with you about the material bulk density and particle size issues. If the gap is too large, we suggest you to choose the ribbon mixer.

Reason 2: Overloading.

Solution: Ensure the loading volume is between 30% and 50% of the total volume to provide sufficient tumbling space for the powder.

Q4: How to solve the problem of dust flying during loading and discharging?

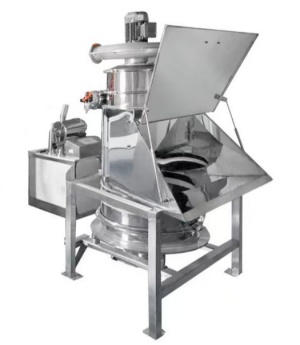

A4: Solution: When loading, you can use the dust-free feeding station to feed. It is often used together with the vacuum feeder. When discharging, the vacuum suction system can achieve closed unloading.

Q5: Incomplete cleaning of the equipment interior poses a risk of cross-contamination?

A5: Solutions: Our V mixer machine is quick-opening clamp design for the inlet and outlet ports. Cleaning is very easy. We recommend using a high-pressure spray gun to clean the equipment directly, as this will result in a cleaner finish.

III. Information and Knowledge

Q6: Is it true that V mixer machine have a "golden angle"?

A6: Yes. The angle of the V mixing barrel is usually between 80⁰ and 90⁰. This angle effectively balances convection and diffusion, achieving the fastest and most uniform mixing.

Q7: Can it even be used for "subtraction"?

A7: Absolutely! Besides mixing, V-type mixers can also be used for shaping and polishing dry particles. For example, in manufacturing candy coatings or certain granules, gentle rolling removes the sharp edges of particles, making their surfaces smoother and improving sphericity.

Q8: Why are some V-type mixers smooth inside, while others have "ribs"?

A8: Smooth interiors are suitable for most general-purpose mixers. The internal reinforcing ribs (forced agitator) are designed to break up the "clumping effect" caused by static electricity or stickiness in some powders. Such design is to handle materials that are prone to clumping or have a slightly higher viscosity. This is a targeted optimization design.

IV. Various Models

V. Delivery Time and After-Sales Service

Delivery Time: The production time for small and medium-sized V mixers is generally around one month. Larger mixers will take about ten days longer. If you have urgent needs, please inform us. We will handle it flexibly and shorten the delivery time. Sometimes, the mixer may be in semi-finished form, in which case the delivery time will be even faster.

After-Sales Service: Our mixer machine comes with a one-year warranty. Within one year, if the equipment malfunctions due to non-human causes, we can provide free replacement parts or other repairs.
