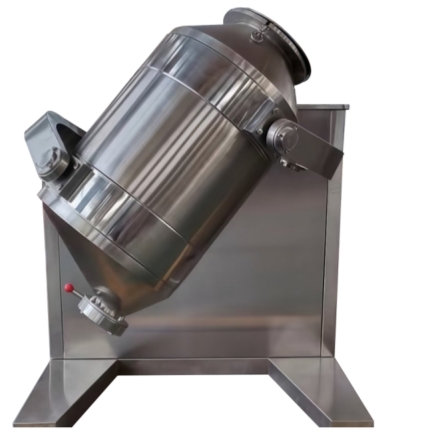

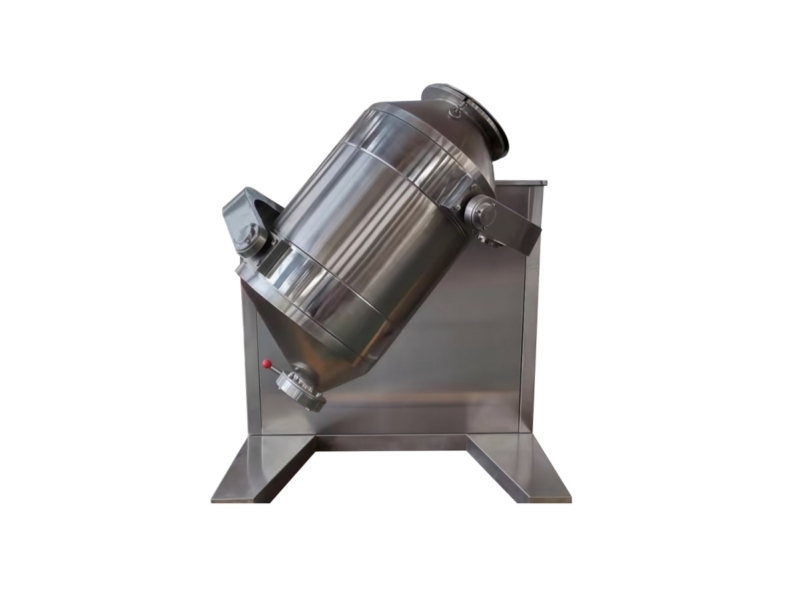

Three-Dimensional Mixer for Mixing Use

I. Basic Conception

Three-dimensional mixer is an efficient and advanced mixing device. Such powder mixer achieves material mixing by complex translation, rotation, and rock motion of the mixing drum in three-dimensional space. Small models like 5L, 10L one often act as laboratory powder mixer.

II. High Uniformity of Mixing

This is the core advantage of a 3D mixer. The materials in the barrel go through complex movements in three-dimensional space, such as rotation, inversion, and oscillation. All these actions result in strong convection, shear, diffusion, and turbulence.

Under the action of gravity, the materials constantly roll, interweave, and interweave, with complex and varied trajectories and no fixed flow direction. These help reach a highly uniform mixing state in a short period of time, especially suitable for materials with vastly different mixing ratios or densities. You can watch the 3D mixer working video to see the specific working performance.

Basically no dead corners in mixing: The three-dimensional motion allow materials to move fully in every corner of the mixing barrel.

III. Mild Mixing Process

Because hybrid power of the three dimensional mixer mainly comes from gravity, the heat generated during the mixing process is minimal. Therefore, the temperature rise is small.

This type mixer is very suitable for mixing heat sensitive materials (such as certain drugs, food additives, biological products, etc.), to avoid material denaturation or degradation caused by frictional heat generation.

IV. Easy to Clean and No Residue

The internal structure of the three dimensional mixer is extremely simple and smooth. Without complex components such as mixing shafts and blades, the positive results are thorough unloading and minimal material residue.

Also, the cleaning will be very convenient and fast. So such dry powder mixer is vert suitable in those using occasions with frequent material replacement and high cleanliness requirements. Especially in the pharmaceutical industry, this type mixer is a very good choice.

V. Technical Data
