In today's diversified food and beverage market, the precise mixing of spice powders has become crucial for product differentiation. Different mixing ratios and uniformity directly determine the flavor profile and sensory experience of the final product - subtle variations in proportion can create distinct taste sensations. With the growing market demand for customized and specialty seasonings, traditional manual mixing can no longer meet the stringent requirements of industrial production.
Therefore, we have launched three main types of spice mixer machines for powder mixing, helping companies achieve flavor standardization and production efficiency. So which mixer is suitable for your factory? Following are the steps for you to confirm the mixer model.
Salinovate has designed V-type mixers, ribbon mixers, and double cone mixers for mixing spice powders. Each of these three types of equipment has its own application advantages and functional characteristics. The following is a detailed introduction to the mixers.

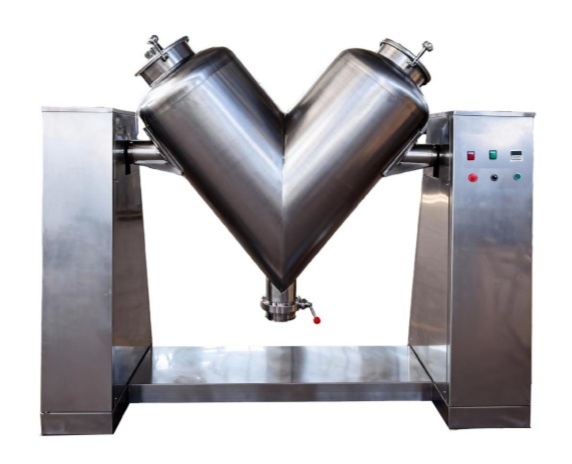

Rotary design: The V powder mixer has a 360 degrees of rotating mixing bowl. Such rotary design causes the powder to continuously separate and diffuse during rotation, achieving a gentle and uniform mixing.
Mixing mode: The powder diffuses due to gravity caused by the cylinder's rotation. An optional built-in stirrer can be added to enhance mixing if there are many types of fragrance powder.
Key advantages: Extremely low particle breakage rate, preserving the original physical properties of the fragrance; thorough cleaning with no dead corners; stable operation and low noise.
Simple structure: stirring shaft, stirring drum, fixed support, stirring motor, reducer, electrical control cabinet
Stirring speed: Standard is fixed speed, variable frequency speed control can be customized.
Agitator: The standard configuration does not include an agitator inside the drum; it is recommended to install an agitator when there are many types of materials with varying bulk densities.
Mixer Specifications: 50L, 200L, 300L, 500L, 1000L, 1500L, etc.

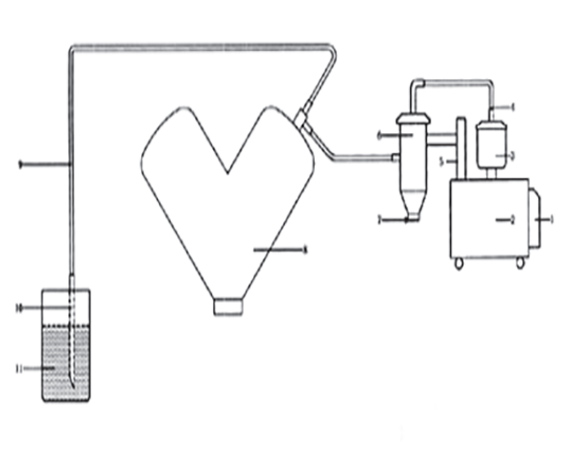

Feeding Methods: Manual unloading; automatic feeding via vacuum feeder
Applicable scenarios: Suitable for the uniform mixing of dry spice powders with good flow ability (such as pepper powder, chili powder, cinnamon powder).

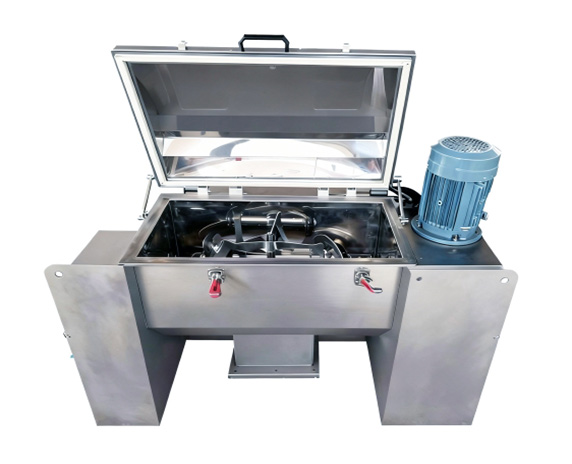

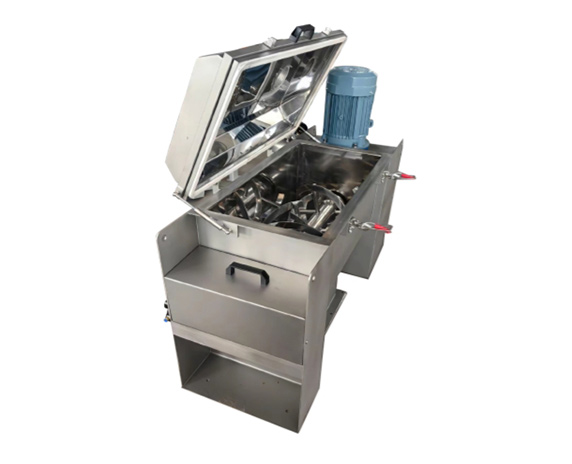

Dispersion and mixing design: The ribbon mixer utilizes internally rotating high-speed ribbon blades to create forced convection and shear motion, achieving rapid and efficient mixing.
Working principle: The inner and outer double-layered ribbons rotate in opposite directions, causing the powder to undergo three-dimensional composite motion in the radial and axial directions, effectively breaking up agglomerates.
Core advantages: Fast mixing speed and high uniformity; excellent breaking and dispersing effect on slightly agglomerated raw materials; capable of handling powders with certain viscosity or density differences.
Feed Inlet Design: Features a large, open lid for easy manual material filling.
Discharge Method: Upgraded to a pneumatic valve for automatic discharge. The valve opens automatically via a button.
Applicable scenarios: Suitable for production lines that require rapid dispersion of spice blends or those containing slight moisture and caking.
Safety Design: A sensor switch design is available for the lid; the agitator automatically stops operating after the lid is opened.
Customization: A sight glass can be installed on the top of the lid for easy observation. An additional nozzle can be added for spraying flavorings or fragrances.
Equipment Compatibility: Compatible with dust-free screw conveyors and also supports automatic feeding via vacuum conveyors.

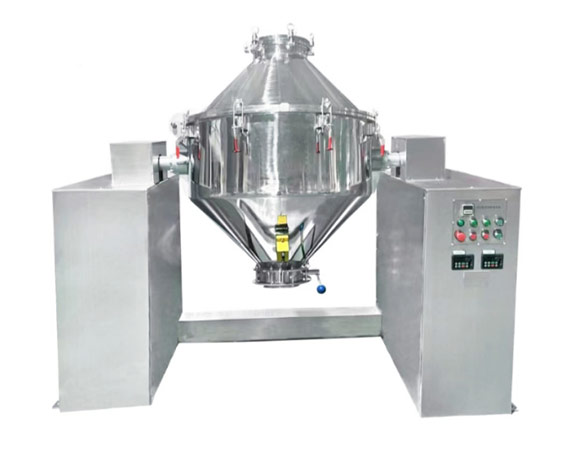

Increased efficiency: The double cone mixer combines the rotary motion of a V-type mixer with the mechanical stirring of a ribbon mixer, achieving a leap in mixing efficiency through this dual action.
Working principle: While the drum revolves and tumbles, the internal ribbon spins and stirs, creating a strong vortex and diffusion combined motion.
Core advantages:Mixing efficiency is approximately doubled compared to conventional equipment; processing time is short, and uniformity is extremely high; it can handle complex formulas with poor flow ability and large density differences.
Innovative Design: Rotating cylinder with built-in screw ribbon and dual frequency conversion speed control.
Cylinder Design: Flip-top design for easy powder cleaning.
Multiple Capacities: 400L, 600L, 800L, 1000L, 2000, etc
Customized Design: Spraying nozzles, heating jacket for drying.
Loading capacity: When a typical mixer has a loading capacity of 50%, this equipment can reach 80%.

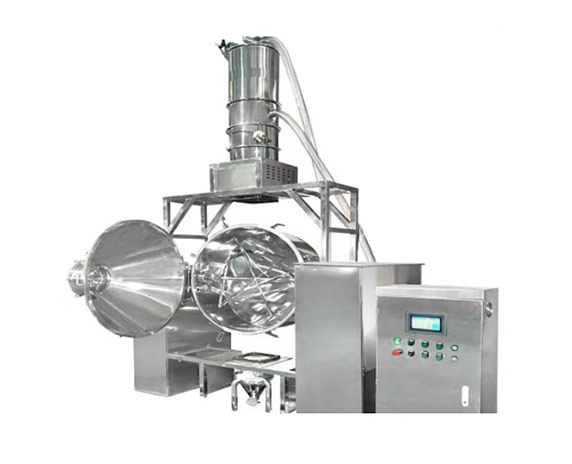

Feeding design: It typically uses a vacuum feeder for automatic feeding; a dust-free feeding station is optional.
Applicable scenarios: Suitable for the production of special seasonings with high difficulty, multi-component formulas, or with extreme requirements for mixing uniformity.
Each spice mixing machine can be used for powder blending, so which one is right for you? Salinovate suggest you consider the following eight aspects before making a decision.
Raw material characteristics analysis
Flowability, particle brittleness and absence of agglomeration
Production capacity
Small-batch, multi-variety production; large-scale continuous production
Mixing uniformity standard
standard uniformity requirements or extremely high uniformity requirements
Special Process Requirements
Simultaneous drying required or Liquid fragrance addition required
Workshop space limitations
Any limit in length, width and height
Investment budget
low budget or medium to heigh budget
Future investment
Any possibility to expand more food powder mixture products
Dust-free production
Whether this is a consideration for your working environment
Provide you with the industry's best solutions
Offer the pre-sales and after-sales technical support
