Large Spice Grinder Machine

I. What Is Large Spice Grinder

As its name suggests, the large spice grinder machine refers to a powder grinding equipment for large scale spice powder production. The grinding capacity ranges from 100kg/h to even 1,500kg/h. Many spice factories need high-capacity spice grinders to expand their existing grinding lines. So what exactly does this type of equipment look like?

II. Unique Structural Design

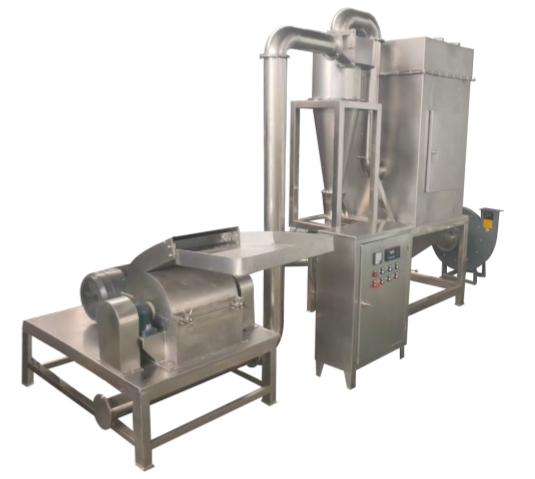

The large-scale spice grinder adopts a horizontal grinding chamber structure, which can hold more dry spices at a time. The integration of grinding head and cyclone dust collection system enables continuous output of spice powder. Simultaneously, spice dust generated during pulverization is effectively collected in the dust collection box. The entire spice powder production process is cleaner and more hygienic, meeting food production requirements.

III. Working Process

Feeding: You can choose to manually pour in the spices. Or you choose to automatically feed them using a belt conveyor or screw feeder.

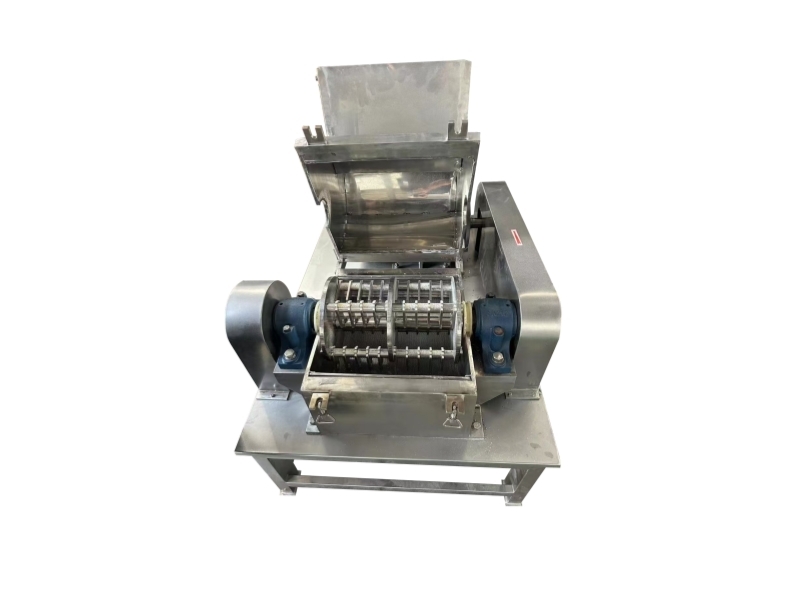

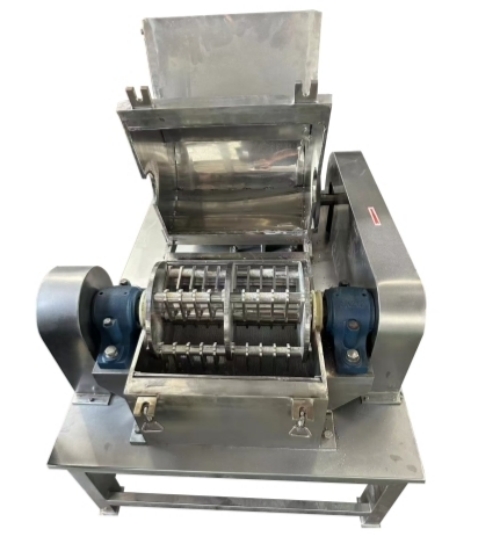

Crushing: After the raw materials enter the machine cavity, multiple sets of built-in crushing blades will crush and grind them.

Sieving: After crushing, powder particles with pore sizes smaller than the sieve mesh size will be sieved out.

Discharge: The large spice grinder has the blower. The blower will blow the screened powder to the cyclone for discharge.

IV. Machine Characteristics

1)hammer type cutter: it is suitable for low oil and medium oil spices grinding into powder

2)adjustable output size: change the sieve in the grinding chamber to control the output size

3)continuous production: it has the cyclone discharging system, the production is continuous.

4)dust free: there is a dust collecting system for such machine to grind spices, the dust is few.

V. How to Use the Machine

Connect the wire first, and connect the air compressor. Start the blower first then turn on the discharge motor, and grind motor and the pulse for the dust collecting. Then throw the spice into the feeding hopper of the dry spice grinder, you can see spice powder out from the discharge valve.

Check the spice powder size, and if you need coarser or finer, you can change the different size sieve. We suggest you to purchase different size sieves as spare parts when purchasing the dry spice grinding machine.

VI. Technical Data

VII. Why You Choose This Type

This large spice grinder machine is wide in the spice grinding application. Basically you can use grinder to grind nearly 70-80% of the spices. Also, the production capacity of this spice grinding machine is large. It will be a really good choice if you have many spice products.
