Turmeric Powder Grinding Machine

I. Brief Introduction

Dried turmeric possesses unique medicinal and edible value, requiring high standards for processing hygiene and powder fineness. Due to the hardness and high fiber content, ordinary household grinders or general-purpose mills often fall short. Our SLU series (integrated structure with dust collector) turmeric powder grinding machine features a unique design, specifically suited for industrial turmeric powder production.

II. Core Introduction: Integrated Components

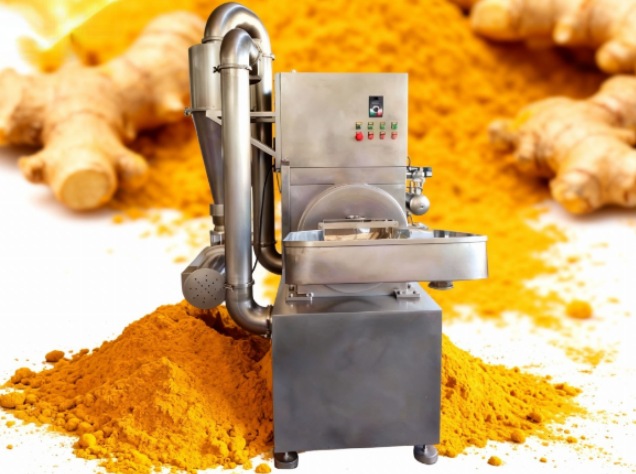

This is a well-designed integrated turmeric grinding machine with dust removal system. It's not a standalone machine, but a complete working unit. There are mainly four core machine components.

1. Grinding Unit:

This is the heart of the grinding machine. Utilizing high-strength materials and precision manufacturing processes, it ensures powerful grinding capabilities for hard materials.

By adjusting the screen mesh, you can control the fineness of the turmeric powder from coarse size to fine size.

2. Pulse Dust Removal System:

Key to Environmental Protection and Recycling: Equipped with a high-pressure pulse device, it periodically blows and automatically cleans dust adhering to the filter bags.

Such design helps the grinding machine maintain continuous and efficient dust collection capabilities.

3. Cyclone Discharge Device:

After pulverization, the air-powder mixture passes through a cyclone separator. Under centrifugal force, most of the finished powder is separated and discharged centrally from the bottom outlet.

This ensures rapid and continuous discharge, facilitating direct bagging or entry into the next process, thus improving production efficiency.

4. Electrical Control Cabinet:

Provide centralized control and protection for the entire system's motors, fans, etc., ensuring simple operation and reliable safety.

III. Unique Features and Core Advantages of the Equipment

1. Integrated Structure, Saving Space and Installation Costs

Advantages: On one same sturdy frame, you can see the grinding, dust removal, and discharge modules. The integrated design results in a compact structure that reduces the cumbersome procedures of on-site installation and piping connections. This not only significantly saves factory floor space, but also requires almost no complex installation after installation.

2. Diverse Hopper Designs to Handle Different Material States

Standard Hopper Type: It is suitable for granular or small lump materials which move very quickly.

Inclined Hopper: It is a specific design for large pieces of materials such as turmeric slices. Because turmeric slices are thin and flat, they are prone to bridging and clogging at the inlet. The inclined design utilizes the material's own gravity, allowing it to slide more smoothly and evenly into the crushing chamber, achieving smoother material discharge.

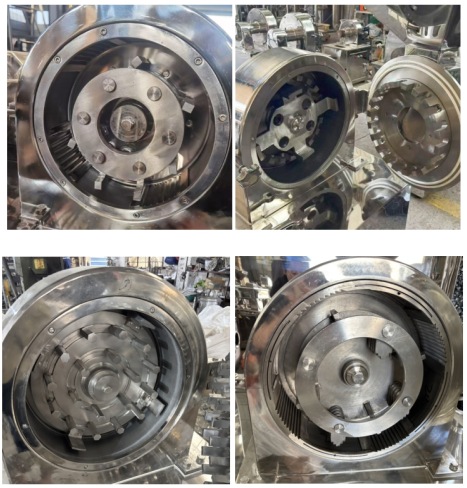

3. Diverse Blade (Grinding Component) Options

The selection of built-in grinding components is flexible based on material characteristics and finished product requirements.

Moving Hammer Type: Highly recommended for turmeric grinding. Utilizing high-speed rotating moving hammers for impact and shearing grinding, it boasts high impact force, high grinding efficiency, and relatively controllable heat generation.

Turbine Type: It is suitable for materials requiring higher fineness and flowability. If you also need to grind black pepper, ginger, chili, etc, this type can also be a good choice.

Blade Type: Such design is suitable for the initial crushing of brittle materials with less fiber and lower toughness.

Grinding Disc Type: For crystal materials, such design is more suitable.

IV. Multiple Models

The integrated structure is suitable for small and medium-sized production needs, and there are two main models to choose from.

If you only need a medum scale industrial use turmeric powder grinding machine, you can consider about this one.
