Brief Introduction

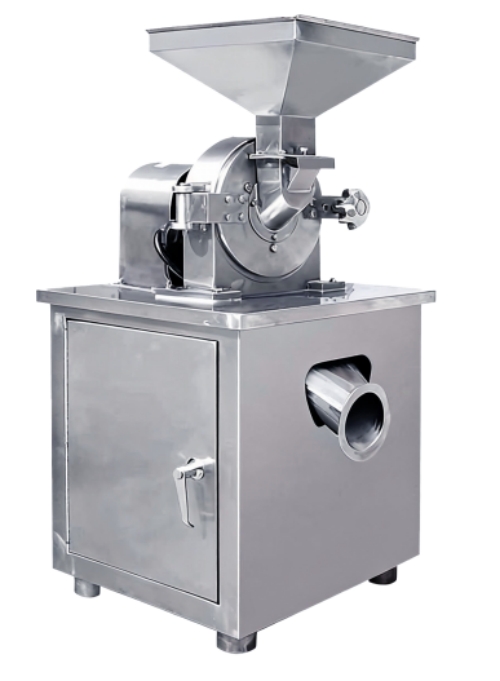

The universal crusher often acts as small cinnamon grinder machine for small-scale production. It has the features of versatility and flexibility, hygiene standards compliance, space-saving and controllable particle size. It is very suitable for the small and medium scale enterprises to do the cinnamon powder business.

Mechanical Structure Analysis

A typical small cinnamon grinder mainly comprises the following core components:

1. Feed Hopper and Feeding Mechanism: Cinnamon sticks enter through the feeding hopper into the mill chamber of the grinder. Usually, the sticks are too long to directly come in. So you can use our coarse crusher to grind sticks into small granules first before this step.

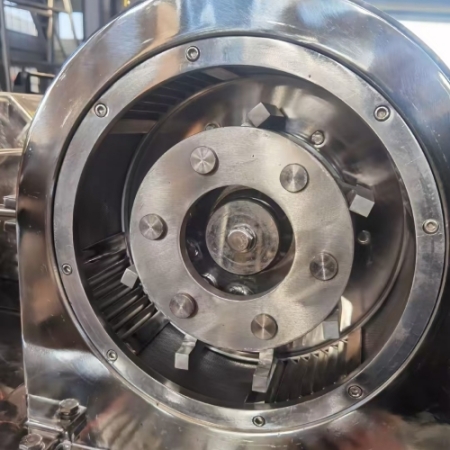

2. Grinding Chamber: This is the core area where grinding occurs. It typically contains grinding mechanism and screen. About the grinding part, there are moving toothed discs and fixed toothed discs. The mutual impact, friction, and collision under high speed rotation transform the cinnamon into fine powder. At the same time, the screen is set below the cutters to help control the output powder size.

3. Drive Motor and Transmission Device: The motor is the power source, driving the grinding mechanism at high speed through a transmission device (such as a belt or reducer).

4. Base and Frame: Provide stable support and bear all components such as the housing and motor.

Cinnamon Grinding Process

The cinnamon grinding process can be summarized in the following key steps:

1. Cinnamon feeding: Manually put the crushed cinnamon granules into the hopper. Open the baffle, then the granules fall into the grinding cavity automatically.

2. Fine Grinding: After entering the grinding chamber, the materials are subjected to intense impact, compression, and friction. These forces will break the granules into fine powder.

3. Sieving and Grading: The ground material is thrown towards the screen outside the grinding chamber under centrifugal force. Powder of suitable particle size passes through the screen openings. Coarse particles remain in the chamber and face the repeated grinding process.

4. Finished Product Collection and Discharge: Usually you can use the bags to collect the qualified cinnamon powder that passes through the screen.

Practical Purchasing Guide

When purchasing a small cinnamon grinder machine, there are several key points you should pay special attention to.

Focus on consumable parts and keep them in stock: To ensure continuous production, it is recommended to purchase consumable parts along with the main unit.

Screen: The screen is a crucial component for controlling powder fineness; different mesh sizes correspond to different fineness. It is recommended to stock several different mesh sizes of screens according to your commonly used fineness specifications.

Drive belt: The main unit belt of the grinder is a consumable, but the using life is much longer than the screens. Usually the belt life lasts one year and even longer. You can also equip more if the using frequency of the cinnamon grinder is very high.

Multiple Models to Pick Up

If you need a small cinnamon grinder machine, you can tell us the required powder size and the expected working capacity(kg/h). Then we give the machine recommend to you.
