Have you ever confused about how to grind ginger root into powder? Salinovate have coarse grinder, middle fine grinder and fine grinder in supply for you.Ginger powder of different fineness has differences in its solubility, flavor release rate, and taste. In this background, we offer a variety of fineness grinding machines. The following text will introduce the equipment involved in ginger grinding and their respective fineness of powder.
Grinding ginger roots into powder mainly requires two steps. The first one is coarse crushing, and the second one is fine crushing. Regarding the fine crushing part, there are middle fine grinder and fine grinder. Of course, the prerequisite for crushing is that these ginger have already been dried.
Coarse crushing is the cornerstone of efficient powder production, and its core equipment is the coarse crusher.
Equipment positioning: Primary crushing equipment designed specifically for processing hard, large, brittle dry ginger roots. The crushing efficiency is very high.
Core function: Strongly crush large pieces of dried ginger roots to significantly reduce their size. Especially when the ginger root size is over 5cm, it is too large for the fine grinder to directly feed in.
Working principle: Materials are usually crushed by high-speed rotating hammer impact or toothed roller compression.
Discharge characteristics: The output is irregular small particles with a size between 3-10 millimeters, and the most particle size is in same range.
Key advantage: Avoiding the problems of low efficiency, energy consumption surge, or equipment damage caused by direct processing of large materials by subsequent fine crushing equipment.
Applicability: It is an essential first process equipment for all ginger powder production lines, especially suitable for situations where the initial material block size is large.
Capacity correlation: Its processing capacity needs to be matched with the subsequent fine crushing equipment to ensure smooth production line.
Attention: Before feeding, it is necessary to ensure that the moisture content of the dried ginger is sufficiently low (usually below 12%) to ensure optimal crushing effect and prevent sticking to the cavity.
When the target fineness is in the medium range, our SLU series common middle fine grinder machine is a very economical choice.
Device positioning: Economical fine grinding equipment, suitable for scenarios where powder fineness requirements are not extreme.
Core Function: Grind the coarse ginger granules into a fine powder with a mesh size of 40-120. The core of its fineness control depends on the replaceable screen mesh (sieve plate).

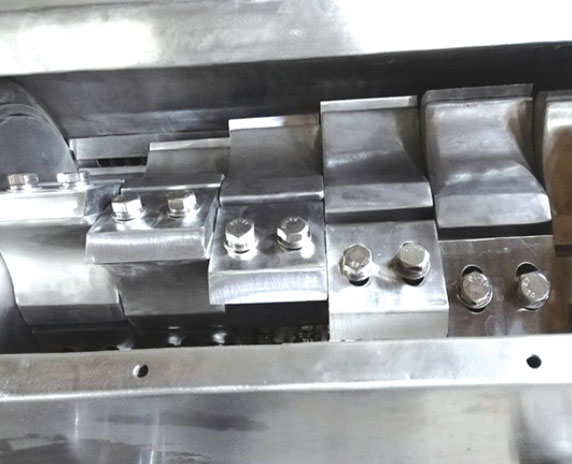

Working principle: The material is repeatedly hit and sheared by a high-speed rotating hammer in the crushing chamber, and the powder smaller than the sieve aperture is discharged. The coarse material continues to be crushed until it meets the standard.
Various Models: Salinovate has small to large models for different scale of production need. For small models, it is single unit. For medium to large models, we will add the cyclone and dust collecting system.
Main advantages: simple structure, low purchase and maintenance costs, mature technology, suitable for most conventional ginger powder production.
Fineness adjustment: By replacing the mesh with different mesh sizes, the fineness of the finished product can be flexibly adjusted, and the operation is intuitive.
Applicability: Widely used in the production of seasoning ginger powder, ginger tea raw materials, feed additives and other products.
Positioning: Our SLA series ultra fine grinder acts as the fine ginger root grinder macchine. This type grinder works for high-end applications that require extremely high fineness and activity.
Core function: This fine grinder is capable of crushing ginger roots to 100-300 mesh or even finer (up to hundreds to thousands of mesh).
Revolutionary feature: Adopting sieve free design, SLA series grinder machine fundamentally avoids the risk of mesh clogging and metal contamination after long time of production.
Working principle: Grinding is achieved based on high-speed impact, collision, and material friction, often combined with airflow transportation.
Fineness control: achieved through a built-in dynamic classifier. By utilizing centrifugal force and air flow balance, only fine powder that meets the standard is allowed to be collected, while coarse particles are automatically returned for further crushing. The fineness can be precisely adjusted by the classifier speed (frequency modulation).
Core advantages: high crushing fineness, uniform particle size distribution, high product purity, controllable temperature rise (effectively protecting the heat sensitive active ingredients in ginger).
Applicability: Designed specifically for high-end health products, pharmaceutical raw materials, cosmetic fillers, and high-end seasonings that have strict requirements for powder quality.
Investment considerations: The equipment has high technological content, and the purchase and operation costs are relatively high, but the added value of the product has also significantly increased.
From the above introduction, Salinovate basically give you two type grinder combinations to teach you how to grind ginger roots into powder. Option A: Coarse crusher plus common middle fine grinder. Option B: Coarse crusher plus ultra fine grinder. Everyone can choose between two options based on their own product requirements and budget.
Core objective
Prioritize efficiency and cost to meet the needs of the mass market
Investment and Cost
Low (equipment cost, low operating energy consumption)
Technical key
Sieve filtration, mechanical grinding
Finished product fineness
40-120 mesh (conventional fine powder)
Core objective
Prioritize quality and functionality, and explore the high-end market
Investment and Cost
High (equipment is expensive, energy consumption is usually higher)
Technical key
Dynamic airflow grading, impact breaking
Fineness of finished product
100-300 mesh or more (ultra-fine/micron powder)
