Case Study - Upgrading Ginger Powder Grinding Machine
By:Salinovate Team
This article shares the experience of a seasoning powder manufacturer upgrading their ginger powder grinding machine. The new chosen ginger grinder is our SLA-20 model ultra fine ginger powder grinder for 100-200mesh fine powder. You can read the following case study to know more.
I. Project Background
Before the formal discussion of the ginger grinder selection, we would like to introduce the project background first.
1.1 Client Profile
The client featured in this case study is a manufacturer of seasoning powders. Their product portfolio encompasses a variety of seasonings. This time, the customer aimed to find a fine powder grinder machine for ginger powder making.
1.2 Pain Points with Existing Equipment
The pulverizing equipment originally utilized by the client was a screen-adjustable type, which presented the following issues:
Pain Point | Manifestation | Impact |
Inconsistent fineness | Wide particle size distribution after pulverizing | Unstable product quality |
Insufficient fineness | Unable to meet requirements for high fineness | Difficulty entering the high-end market |
Quality limitations | Capable of producing only standard-grade ginger powder | Low product added value |
1.3 Core Requirements for the New Equipment
Requirement | Specific Specifications |
Fineness requirement | 100–200 Mesh; Uniform and consistent |
Production capacity | 250 kg/h |
Quality objective | Produce high-end ginger powder; enhance product added value |
Material requirement | Mirror-polished; food-grade |
Equipment type | Ultra fine powder grinder |
II. Solution: SLA-20 Model Fine Powder Grinder
Based on the client's specific requirements regarding ginger pulverization fineness and production capacity, we quickly identified the SLA-20 model as the ideal solution.
2.1 Demand Matching
Client Requirements | SLA-20 Solution |
Fineness: 100–200 mesh | Ultra fine pulverization technology; precise and controllable fineness |
Capacity: 200–300 kg/h | Perfectly match the client's production capacity requirements |
Uniform particle size | Airflow classification + ultra fine grinding; narrow particle size distribution |
Premium quality | Meet the production standards for high-end ginger powder products |
2.2 Core Advantages
Advantage | Description |
Ultra fine pulverization | Fineness reaches 100–200 mesh; results are uniform and consistent. |
Air classification | Features a built-in classification system for a narrow particle size distribution. |
Dust-free | This type grinder has a complete cyclone and dust collecting system. |
Food-grade material | Basically the most materials are SUS304, the blade adopts hard material to prolong using life. |
2.3 Comparison with Traditional Screen-Adjustable Equipment
Comparison Dimension | Screen-Adjustable Type | SLA-20 Ultra Fine Grinder |
Fineness range | 10-120mesh | 60-300mesh |
Particle size uniformity | Non-uniform (Inconsistent) | Uniform and consistent |
Fineness control | Screen Replacement | Airflow classification + parameter adjustment |
Product positioning | Standard grade | High-end grade |
III. Customer Decision-Making Process
3.1 Performance Verification
To instill confidence in the equipment's performance, we demonstrated the ginger pulverization results to the customer:
Verification Method | Content | Customer Feedback |
Sample testing | Pulverization test conducted | Uniform fineness; satisfactory results |
You can watch the dry ginger grinding video as followed to see the powder performance:
3.2 Discussion of Special Requirements
Based on their specific production environment, the customer put forward two special requirements:
Special Requirement | Customer Consideration | Our Solution |
Mirror polishing of equipment surfaces | Food-grade compliance; ease of cleaning | Customized mirror polishing applied as per customer request |
Upgrade to round dust collector | Square dust collectors are prone to dust accumulation | Upgraded to a round dust collector to facilitate easier dust shedding |
3.3 Rapid Decision-Making
Following thorough technical discussions and performance verification, the customer quickly selected the SLA-20 model ultra fine grinder. Meanwhile, the customer also confirmed their specific customization requirements regarding the mirror polishing and the round dust collector.
IV. Equipment Configuration and Customization Highlights
The complete configuration and customized details of the SLA-20 model ginger grinder are specified in the following:
4.1 Standard Configuration vs. Customer Customization
Item | Standard Configuration | Customer-Customized Configuration |
Machine surface | Matt polished | Mirror polished |
Dust collector type | Square | Cylindrical |
4.2 Design Advantages of the Cylindrical Dust Collector
Advantage | Description |
Easy dust slide-off | The cylindrical inner wall features no dead corners, preventing dust accumulation. |
Smooth discharge | Ensure more thorough dust collection and discharge. |
4.3 Equipment Parameters
Item | Parameter |
Equipment model | SLA-20 |
Applicable materials | Dry ginger, garlic, turmeric, cinnamon, herbal leaf, etc |
Grinding fineness | About 60-300mesh(adjustable by inverter) |
Production capacity | About 200-300kg/h |
Motor power in total | 30kw |
Voltage | 380V, 50Hz, 3P |
Main material | SS304 |
Surface treatment | Mirror polished |

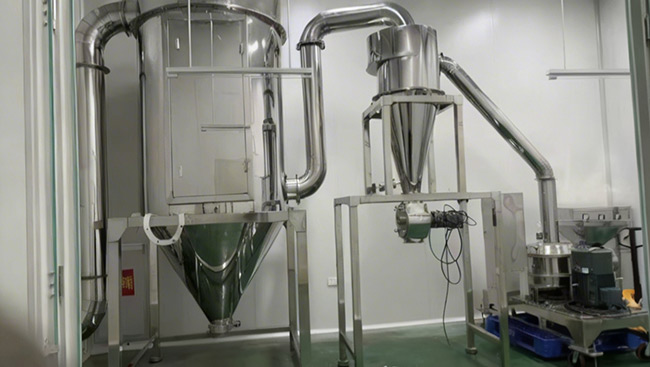

V. Equipment Delivery
Project | Status |
Equipment customization | Completed according to customer requirements (mirror polishing, circular dust collector) |
Factory testing | Passed |
On-site Installation | Completed |
Equipment status | Deployed to the customer's production workshop |
VI. Summary
This case study illustrates the complete process undertaken by a seasoning powder manufacturer to upgrade their ginger powder grinding machine:
Stage | Content | Key Points |
Original pain points | Screen-adjusted equipment; inconsistent particle size/fineness | Unable to produce high-end products |
Upgrade requirements | Fineness: 100–200 mesh; capacity: 200–300 kg/h | Quality enhancement |
Recommended solution | SLA-20 model ultra fine grinder | Ultra fine pulverization + airflow classification |
Special customization | Mirror polishing + cylindrical dust collector | Meet specific client requirements |
If you are also seeking a high-quality ultra fine pulverization solution for ginger powder or other seasoning powders, please feel free to contact us for equipment selection advice.
