FrenchCompact Dust Collector Design for Small Powder Grinders
By:Salinovate Team Aug 27,2026
Here we would like to share with you a new designed practical dust control system for small powder grinders, featuring a table-mounted pulse-jet filter box and buffer hopper that add minimal footprint and cost while effectively reducing dust emissions.
I. Introduction: The Dust Challenge with Small Grinding Units
In powder processing, small grinding units (such as our SLU series standalone units) are widely used in small-to-medium food factories, spice processing workshops, and laboratories due to their low cost, small footprint, and operational flexibility. However, dust generated during grinding can be a persistent headache.
Three sources of dust problems:
Source | Issue |
Grinding chamber exhaust | Internal airflow carries fine powder through equipment gaps |
Discharge port dust | Powder falling from the outlet into collection bins creates dust |
Bin changes | Residual dust disperses during container replacement |
For large-scale systems with cyclone dust collection, these issues are well addressed. But for standalone units without integrated dust control, finding a solution that does not significantly increase footprint or cost has been a practical challenge. According to Hosokawa Micron technical literature, pulse-jet collectors are widely used in product collection from pulverizers and classifiers, with cylindrical housing designs that minimize powder trapping and maximize cleanability. This principle can be adapted for small grinding units.
II. A Simple Solution: Pulse-Jet Filter Box + Buffer Hopper
To address the above challenges, we have developed a space-saving, cost-controlled dust control solution for SLU series stand-alone grinders. The design improves dust conditions at the discharge stage without altering the main machine structure.

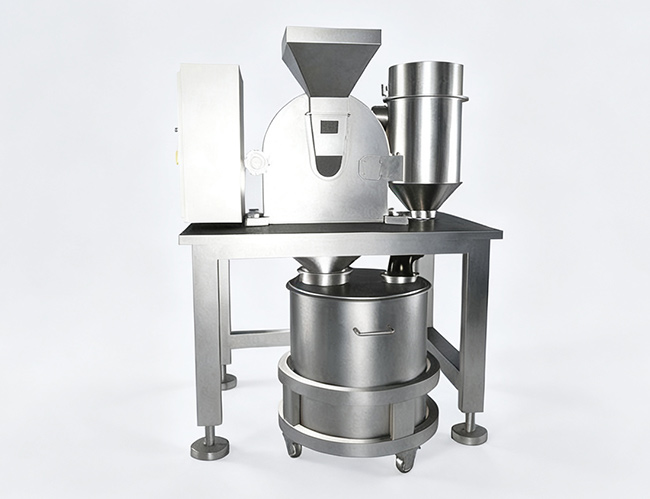

System Configuration:
Component | Function | Design Feature |
Small pulse-jet filter box | Capture dust generated during grinding | Mounted on the grinder base plate, additional space occupation is small. |
Buffer hopper | Cushion discharge and reduce drop height dust | Installed below the discharge port, with moderate storage capacity. |
Shared collection bin | Final powder collection | Both filter outlet and hopper outlet feed into one stainless steel bin. |
How It Works:
1. Grinding Dust Capture: Dust-laden air from the grinder enters the small pulse-jet filter box, where particles are captured by filter media while clean air is discharged
2. Discharge Buffering: Ground material enters the buffer hopper first, reducing the drop height into the collection bin and minimizing dust generation

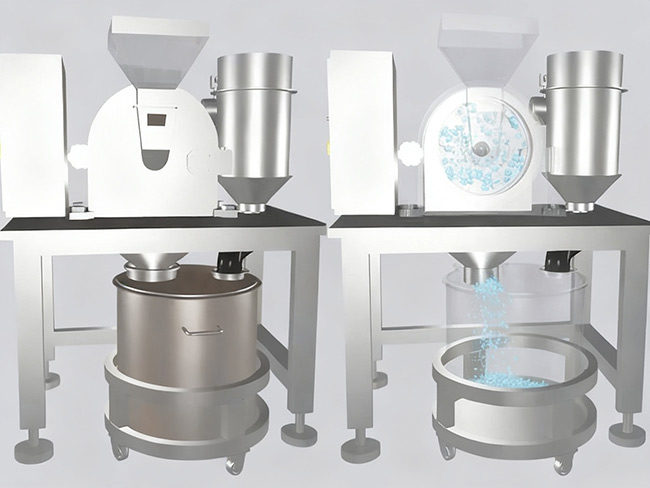

3. Unified Collection: Both the filter-collected dust and the finished product from the buffer hopper flow into a shared collection bin as shown in the picture below, eliminating material waste.
III. Key Design Advantages
Advantage | Explanation |
No big additional footprint | Filter box mounts directly on the grinder base plate |
Controlled cost increase | Increase much lower cost than a separated dust collection system |
Shared outlet | Both outlets feed into one collection bin, simplified operation |
Effective dust reduction | Buffer hopper reduces drop height + filter box captures over fine powder |
Maintain Flexibility | Still simple machine structure, easy to operate |
IV. Real Example

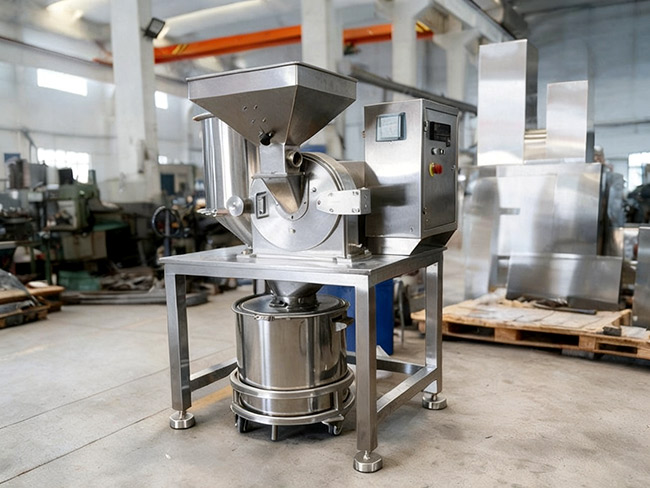

We have recently completed a prototype of this compact dust control design for the SLU-30 model standalone grinders. It is made for a food additive manufacturer to process medium to fine level powder. The machine capacity is about 70-100kg/h for the food additive powder, the simple dust control design is suitable.
V. Summary
For small grinding units with limited space and budget, the compact dust collector design(pulse-jet filter box and buffer hopper) can be a very good dust control solution. If you are looking for a small powder grinder machine with cheap dust control design, contact Salinovate team for more details.
