Powdered sugar serves as a fundamental raw material across the baking, food processing, and catering industries. From decorative glazes atop bread to the delicate dusting on macaron, different application scenarios impose distinct requirements regarding the fineness, production output, and hygiene standards of powdered sugar.
Faced with such diverse customer demands, a single type of grinding machine is insufficient to address the full spectrum of application scenarios. Consequently, we offer three main types of sugar grinding machines as options to cover the entire range of requirements from standard powdered sugar to ultra-fine icing sugar. Meanwhile, different needs from standalone operations to systems incorporating eco-friendly dust removal, and from small-batch runs to large-scale industrial production can be met.
We primarily supply the SLU series (standalone units), the SLU dust-collection series, and the SLA ultra fine series for the sugar grinding into powder. These series differ in their technical specifications and applicable scenarios. In the following sections, we will provide a detailed introduction to each specific machine to assist you in selecting the most suitable equipment based on your specific requirements regarding fineness, production capacity, environmental standards, and budget.

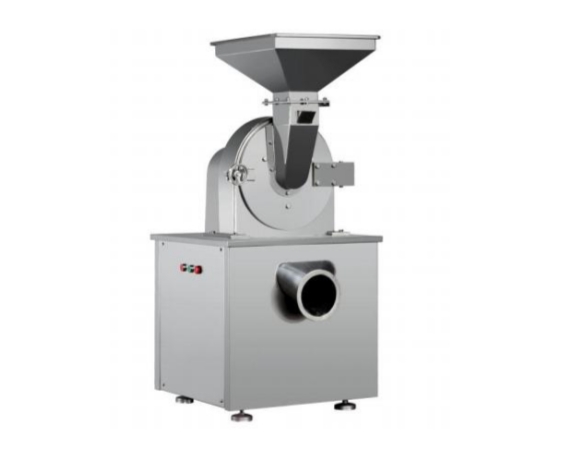

The single grinder unit serves as an economical entry-level choice for sugar grinding. Featuring a design that utilizes a sieve to control fineness, it boasts a simple structure and an affordable price point.
Fineness Range: about 60-150mesh for sugar powder
Output Range: about 20-60kg/h for the SLU-10 and SLU-20 model; for larger model, we suggest to equip the dust collector.
Production type: batch production, cloth bag is a must for collecting the sugar powder.
Applicable Scenario: small batch production
Low Investment Threshold: Start at about $2,000, making it suitable for users with limited budgets.
Simple Operation: Operate as a standalone unit; require no complex auxiliary equipment.
Easy Maintenance: Feature a simple structure with few wear-and-tear parts.
Flexible Mobility: Compact size allows for flexible placement and layout.
Bakeries making their own powdered sugar
Small-scale food processing plants
Central kitchens for restaurant chains
Laboratory R&D
Early-stage startup brands

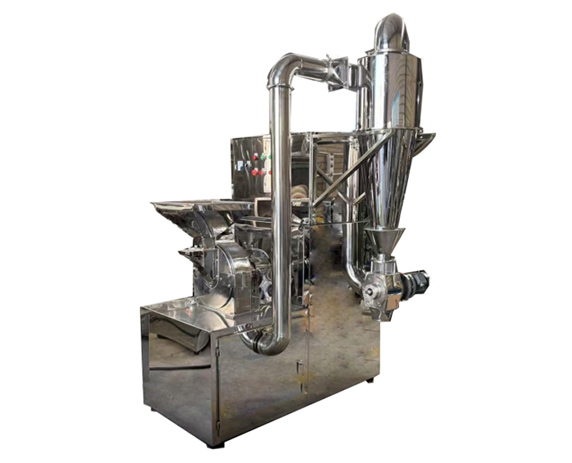

The type is the upgrading version of the standalone single grinder unit, with the integration of dust collection system. Joint and split design dust collector exist together to meet different scale powder collection need.
Structural Features: The main pulverizing unit is equipped with a cyclone discharge system and pulse dust removal.
Applicable Scale: Medium to large-scale production.
Footprint: Compact for joint design; larger for split-system.
Dust Control: Comply with environmental protection standards.
Improved Working Environment: Reduce workshop dust levels and safeguards worker health.
Material Recovery: Fine dust collected by the dust collector can be recovered and reused.
Continuous Operation: Suitable for prolonged, continuous production runs.
Medium and large scale batch production of powdered sugar
Food processing plants with specific requirements for the operating environment
Processing lines requiring continuous production

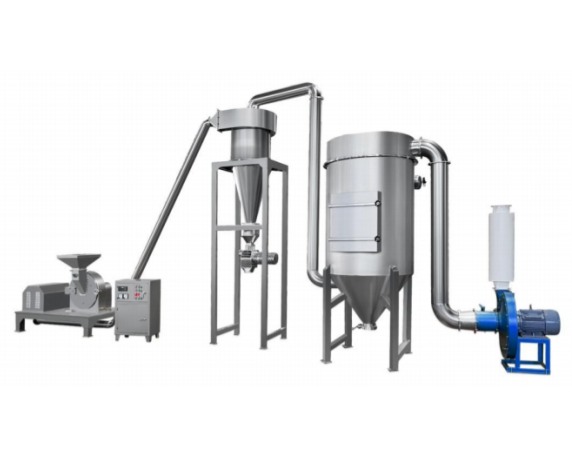

The SLA series features a design combining high-speed pulverizing blades with air classification. Such design enables the production of ultra-fine powdered sugar ranging from 200 to 500 mesh.
Structure: Grinder unit plus cyclone discharge system and plus dust collector
Production type: Continuous type
Occupation: Usually large
Unit Price: Start from about USD12,000, cost higher than the other two types
Ultra-fine particle size: 200–500 mesh, far exceeding the capabilities of other options
Convenient fineness adjustment: A control knob regulates the classifier wheel speed, requiring no machine shutdown or disassembly.
Uniform particle size: Air classification ensures a narrow particle size distribution.
Mid to high-end baking food manufacturer
Manufacturers requiring very fine sugar powder for their food production
Food plants with a need for the continuous sugar powder production
As evident from the above, the three distinct types of sugar grinding machines differ in terms of structures, functions, costs, etc. To facilitate comparison and selection, we have compiled a comparative analysis across the following six key dimensions. In summary: the SLU series meets standard powdered sugar requirements (60–150 mesh), while the SLA series specializes in ultra-fine icing sugar (200–500 mesh). For limited budgets, the standalone SLU unit is the ideal choice; for strict environmental compliance, opt for a configuration equipped with a dust collection system; and for those seeking the ultimate level of fineness, the SLA series is the recommended option. Should you require further details or personalized selection advice, please do not hesitate to contact us.
Sugar Powder Fineness
SLA series can produce finer sugar powder than the SLU series
Production Efficiency
SLU with dust collector and SLA are better than SLU standalone singe grinder unit
Dust Free
SLU single unit does not equip the dust collecting system, while the other two options have.
Fineness Adjust Design
SLA has the advanced no screen design, only adjust the knob to change the speed.
Purchase Cost
SLU single unit < SLU grinder unit with dust collector < SLA series
Using space
SLU single grinder unit takes the smallest space of your production room
Application Scenarios
The powdered sugar produced by SLA is used in high-end baked goods and features excellent fineness.
Provide you with the industry's best solutions
Offer the pre-sales and after-sales technical support
