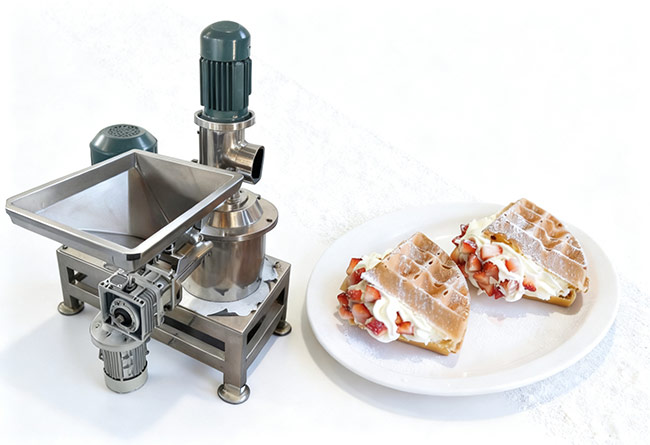

SLA Series Fine Sugar Powder Grinding Machine

Here we introduce the core technologies, fineness adjustment methods, and application scenarios of the SLA series ultra fine sugar powder grinding machine. Specifically designed for the production of high-fineness powdered sugar (200–500 mesh), this series represents the ideal equipment for the high-end food processing industry.

I. Product Overview: When Is the SLA Series Needed?

Conventional white sugar pulverization (60-150 mesh) can be easily accomplished using standard pulverizers. However, when you require ultra-fine powdered sugar in the 200-500 mesh range, standard grinders prove inadequate. They fail to achieve the required fineness, and the particle size distribution is also uneven.

The SLA series grinder was created precisely to address this need. It features a design combining high-speed pulverizing blades with air classification technology. Utilizing a screen-free structure, it allows for precise control over the fineness of the pulverized sugar, making it the professional-grade equipment of choice for high-end powdered sugar production.

II. SLA Series: Key Technical Specifications

III. Core Technologies: High-Speed Pulverization + Air Classification

Why SLA series can have such fine grinding performance? Let us specify the core technologies of this type sugar grinder.

3.1 Principle of White Sugar Pulverization

The SLA series employs high-speed pulverizing blades to perform the initial crushing of white sugar crystals, followed by an air classification system to precisely grade the resulting powder.

Work flow:

A[White Sugar Feed] → B[High-Speed Blade Pulverization]

B → C[Carried by Airflow into Classification Zone]

C → D{Classification Wheel Screening}

D →|Meets Fineness Standard| E[Finished Product Collection]

D →|Fineness Insufficient| B

Following is a video of our SLA series grinder for fine sugar powder making for your reference:

3.2 Air Classification Design: Screenless Operation, Higher Efficiency

Traditional grinders rely on screens to control particle fineness, presenting the following issues:

● Screens are prone to clogging, negatively impacting production efficiency.

● Screens wear out quickly, requiring frequent replacement.

● Particle fineness is limited by the screen mesh size.

The SLA series utilizes air classification to replace traditional screens:

IV. Fineness Adjustment Method: Classification Wheel Speed Control

Above we have mentioned that it is screenless design, so what exactly we need to do to change the output size? You can see the explanation here.

4.1 How is fineness adjusted?

The pulverizing speed of the SLA series is typically fixed; fineness adjustment is achieved by controlling the speed of the classification wheel:

● Faster classification wheel speed → Greater centrifugal force → Fine particles pass through → Higher fineness

● Slower classification wheel speed → Lower centrifugal force → Coarse particles return → Lower fineness

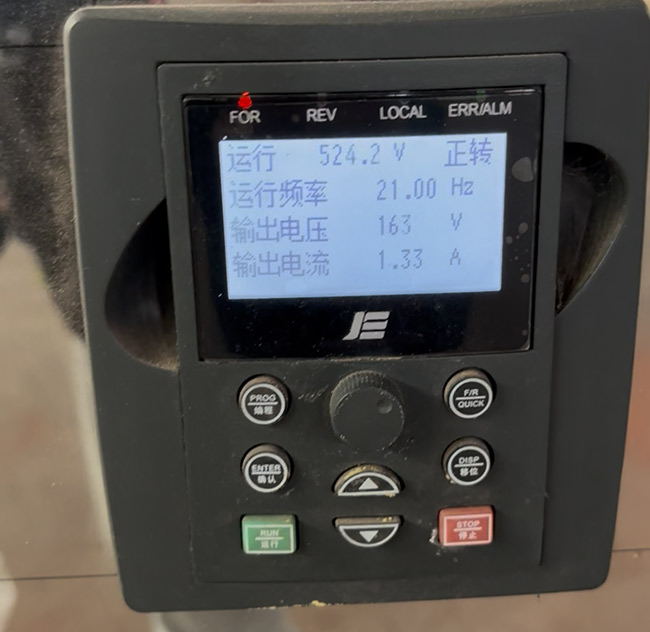

4.2 Operation Method: Knob Control—Highly Convenient

Adjusting fineness simply requires controlling the classification frequency via a knob to regulate the classification wheel speed. There is no need to change screens, nor is it necessary to stop or dismantle the machine; the operation is simple and intuitive.

4.3 Reference Guide for Common Fineness Levels

V. Application of Ultra-Fine Icing Sugar

The ultra-fine powdered sugar produced by this grinding machine is primarily utilized in high-end food applications, specifically for products where a high degree of fineness in the finished product is required.

5.1 Premium Baking

5.2 Confectionery & Chocolate

5.3 Food Processing

VI. Summary

The SLA series fine sugar powder grinding machine replaces traditional sieves with air classification technology. By simply adjusting the speed of the classification wheel via a control knob, it allows for precise control over fineness levels ranging from 200 to 500 mesh. This makes it the professional choice for the production of ultra-fine powdered sugar, offering superior fineness, higher efficiency, and more convenient operation.

For further details or to schedule a sample test, please feel free to contact us.
