Cumin Powder Processing System - Grinding, Vacuum Conveying and Ribbon Mixing

Grinding cumin into powder is only one part of a spice-processing process. For manufacturers producing blended seasonings or other spice-based powders, the more practical question is often what happens after grinding. In a recent customer project, the cumin powder processing system was designed around four main pieces of equipment: powder grinder→stainless steel hopper→vacuum conveyor→ribbon mixer.

Salinovate team will explain to you the reasoning behind this equipment arrangement and the key factors buyers should consider when planning a similar cumin or other spice powder processing system.

I. From a Powder Grinder to a Complete Processing System

A customer looking for a cumin grinding machine may initially focus on three parameters:

  • Grinding capacity

  • Final particle size

  • Machine configuration

These determine whether the grinder can produce the required cumin powder. However, once the powder leaves the grinder, another production problem begins: How does the powder get to the next process?

For a small operation, the answer may simply be manual handling. An operator collects the ground cumin, transports it to the mixer and loads it manually. For higher production volumes, this creates additional handling points. The production process then becomes: cumin→grinder→bag/container→manual handling→mixer. This arrangement may work at a small scale, but it can become less attractive when:

  • Production volume increases

  • Grinding and mixing equipment are separated by distance

  • The mixer operates in batches

  • Several batches need to be produced every day

  • Powder dust during manual charging becomes a concern

  • The factory wants to reduce repetitive material handling

An integrated system changes the material flow to: cumin→grinder→hopper→vacuum conveying→ribbon mixer. The purpose is not simply to automate one machine but to to create a more continuous and controlled connection between different processing stages.

II. Cumin Powder Processing Flow

The customer’s equipment arrangement can be understood as four functional stages.

Stage 1: Grinding

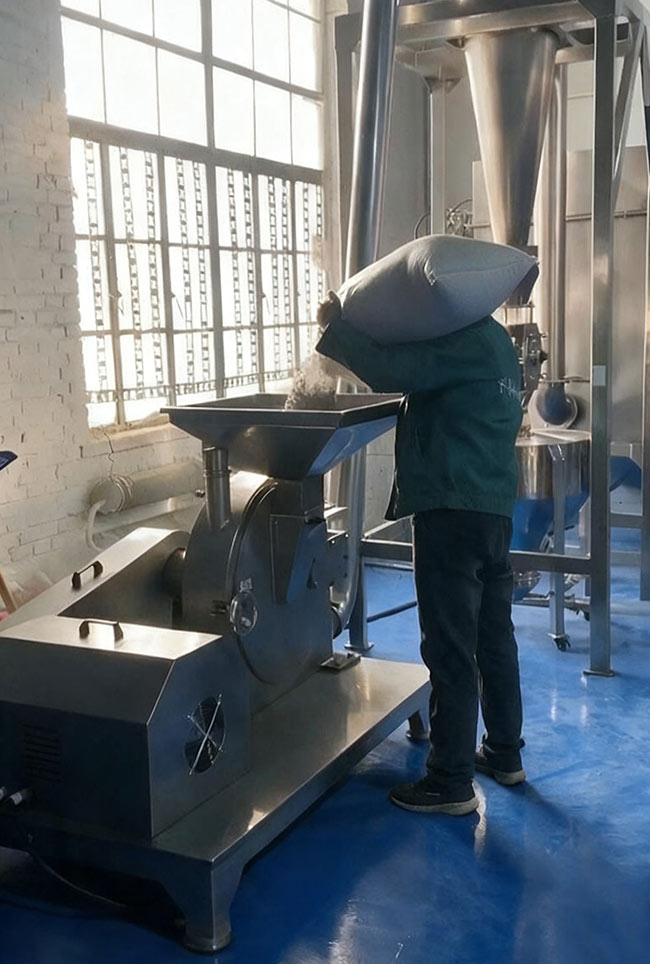

Whole dry cumin is processed by our SLU-500 model powder grinder with the cyclone and dust collecting system to achieve the required powder fineness(10-60 mesh).

Stage 2: Intermediate Receiving

The ground cumin enters a stainless steel hopper. The hopper provides a receiving and temporary holding point between grinding and conveying.

Stage 3: Vacuum Conveying

The vacuum conveying system draws the ground cumin from the hopper and transfers it automatically through a conveying pipeline.

Stage 4: Ribbon Mixing

The cumin powder enters our SLR-500 model ribbon mixer, where it can be blended with other ingredients according to the customer’s formulation.

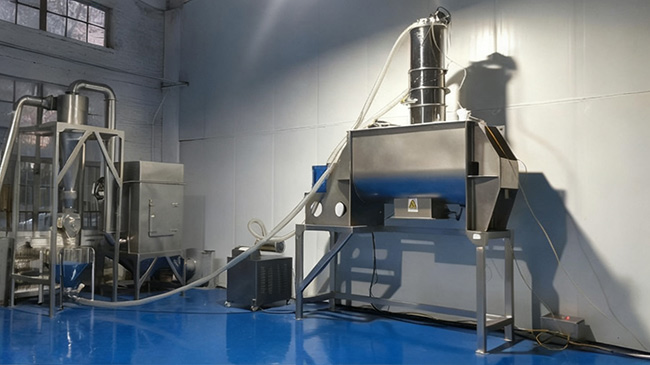

The simplified process is: feed in dry cumin→powder grinding→stainless steel hopper storage→vacuum conveying→ribbon mixer blending. This arrangement separates the individual processing functions while keeping the material flow connected.

III. Why Not Connect the Grinder Directly to the Ribbon Mixer

Direct discharge is possible in some production layouts. However, it is not always the most practical solution. The main reason is that grinding and mixing often operate differently. A grinder may operate continuously or semi-continuously. A ribbon mixer, on the other hand, is commonly operated in batches.

If the two machines are connected directly, their operating cycles become closely dependent on each other. An intermediate hopper can provide a buffer between these two stages. The grinder can discharge the powder into the hopper, while the conveying system transfers material to the mixer according to the mixing schedule. This gives the production system more flexibility.

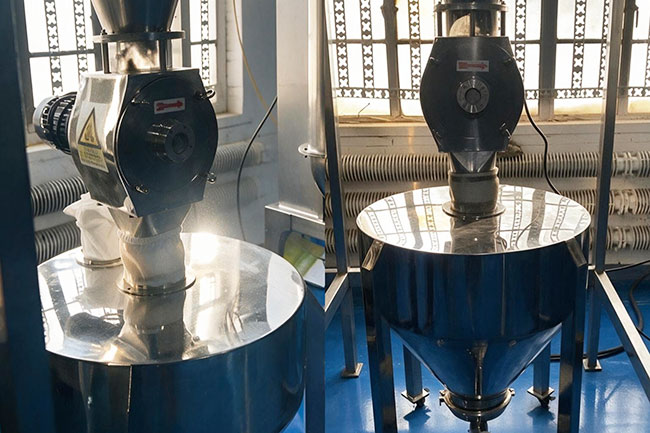

IV. What Is the Role of the Stainless Steel Hopper

The hopper may look like a simple component, but it can perform an important role in an integrated powder-processing system. Its primary functions include:

1. Receiving Ground Powder

The hopper provides a defined receiving point for material discharged from the grinder.

2. Temporary Buffering

It can temporarily hold material when the grinding and mixing processes do not operate at exactly the same rate.

3. Providing a Controlled Pickup Point

The vacuum conveying system can draw powder from a defined outlet instead of relying on an operator to manually transfer the material.

4. Improving Process Layout

The hopper gives the equipment designer more flexibility when the grinder and mixer are positioned at different heights or locations.

V. How Should a Hopper for Cumin Powder Be Designed

Hopper selection should not be based only on its volume. Powder flow ability can be affected by:

  • Particle size

  • Bulk density

  • Moisture

  • Oil content

  • Cohesiveness

  • Storage time inside the hopper

These properties can influence whether the material flows smoothly toward the outlet. For this reason, the hopper outlet, cone angle, discharge opening and conveying pickup arrangement should be considered together. So in this project we designed the cone shaped SS304 buffering hopper with dust filter for this customer, considering the oil content of cumin powder and the powder dust.

VI. Why Use Vacuum Conveying for Ground Cumin

For this client, the cumin grinding capacity is approximately 400 kg/h. Given this high output, manually transferring the ground material into the ribbon mixer was clearly time-wasting and labor-costing. Furthermore, the ribbon mixer was designed with a high discharge outlet to facilitate unloading, as requested by the client. A screw feeder would have offered insufficient conveying capacity, so we equipped the system with a vacuum feeder for automatic material loading.

A vacuum conveying system provides an alternative method in which negative pressure is used to draw the powder through a closed conveying line toward the receiving equipment. For powder processing, this can be useful when the customer wants to reduce manual transfer between machines.

VII. Why Enclosed Powder Transfer Matters for Spice Processing

Ground spices are generally dusty materials. When an operator manually pours powder from a bag or container into a mixer, the transfer point can generate airborne dust. Repeated manual charging may therefore create additional:

  • Cleaning work

  • Product loss

  • Operator exposure to dust

  • Housekeeping requirements

  • Material handling labor

A properly designed vacuum conveying system can provide a more enclosed transfer path. However, vacuum conveying should not be viewed as an automatic solution for every powder. The conveying system must be matched to the material and process.

VIII. When Does an Integrated Powder Processing System Make Sense

For very small production volumes, manual transfer may still be the more economical solution. An integrated system may be worth considering when:

  • Production volume is increasing

  • Manual powder transfer is labor-intensive

  • Grinding and mixing are located separately

  • The mixer works in batches

  • Dust during manual charging is a concern

  • Several spice ingredients need to be blended

  • The customer wants to reduce repetitive handling

  • The factory is planning further automation

The goal is not to automate every operation simply but to identify where equipment integration provides a practical improvement in: material flow + labor efficiency + dust control + production continuity + process consistency.

IX. Final Takeaway

This cumin powder processing system features an integrated, closed-loop design tailored to the client's specific powder processing requirements and production capacity. Please feel free to contact the Salinovate Team regarding any needs for spice powder processing equipment or the design of other powder processing lines.
