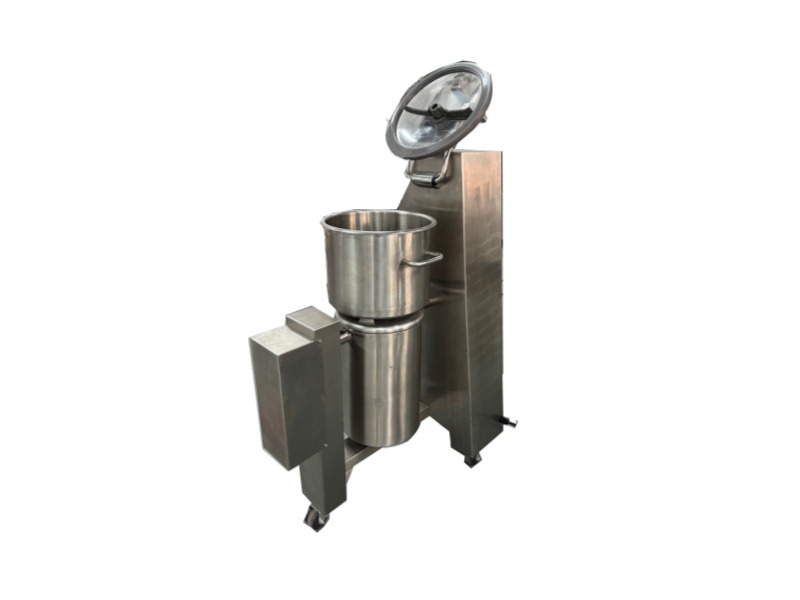

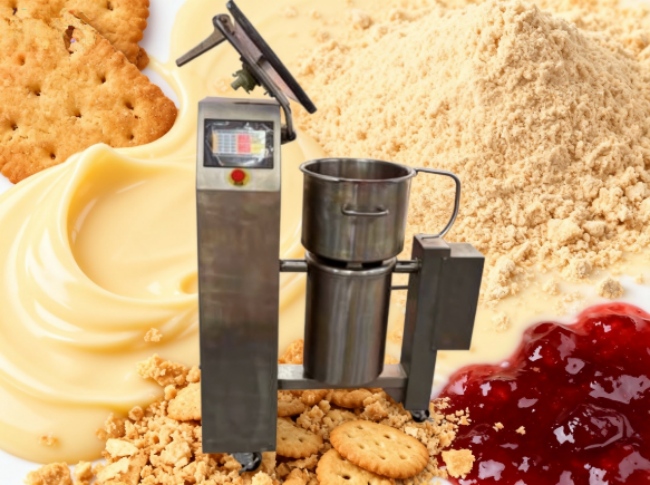

Advanced R30 Vertical Food Cutter Mixer

I. Overview of Food Cutter Mixer

The advanced R30 model vertical food cutter mixer is our updated cutter mixer. Based on advanced industry design concepts, the original simple mixer has undergone a comprehensive upgrade. The mechanical structure is more precise and the flexibility is greater.

In addition to its food cutting and shredding functions, the equipment has other unique design features.

II. Advanced Functional Design

1)Demountable design: Not only are the blades detachable, but the entire food cutter mixer pot body is also detachable. Moreover, it features a quick-release design, making it very convenient for users to operate.

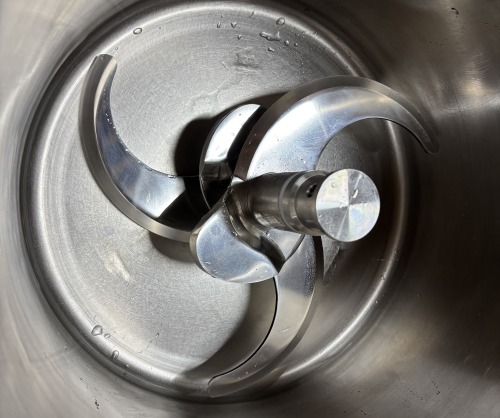

2)Upgraded blade design: Adopts a three-set shredding blade design, covering a wider shredding height.

3)Electric tilting: The standard model features an electric tilting pot design. This eliminates the need for manual tilting, making the design safer and more efficient.

4)Safety Design: In addition to the emergency stop switch, the standard model of the machine comes with a built-in safety design. The cutting blades will not operate when the pot is tilted. The pot must be returned to its original position before pulverizing can resume.

5)Working process: You can watch the food processing video by this cutter mixer to see the working performance.

III. Difference from the Robot Coube Cutter Mixer

1)Control button: The robot coube brand adopts the button type as shown on their website. As you can see, this type mixer adopts the PLC control touch screen method.

2)Discharge method: There is a hand switch design at the side of the mixer pot for the robot coube type. We take advantage of the electrical control method to tilt the mixing pot.

3)Comparison: For your convenience to have a comparison, you can view the information of robot coube cutter mixer by visiting their webite.

III. Technical Details of R30 Food Cutter Mixer

1)Motor power: 5.4kw

2)Work voltage: 380V, 50Hz, and 3P(customized based on your voltage)

3)Mixer bowl capacity: 30L

4)Maximum feed capacity: 20kg

5)Overall size: about 800*700*1,500mm in L*W*H
