Bag filling machine type: back-sealing sauce packaging machine
Filling volume: within 6kg
Dosing system: rotor pump
Bag package type: roll film forming bags, back-sealing type
Packaging speed: about 5-10BPM
Machine model: SLBF-100

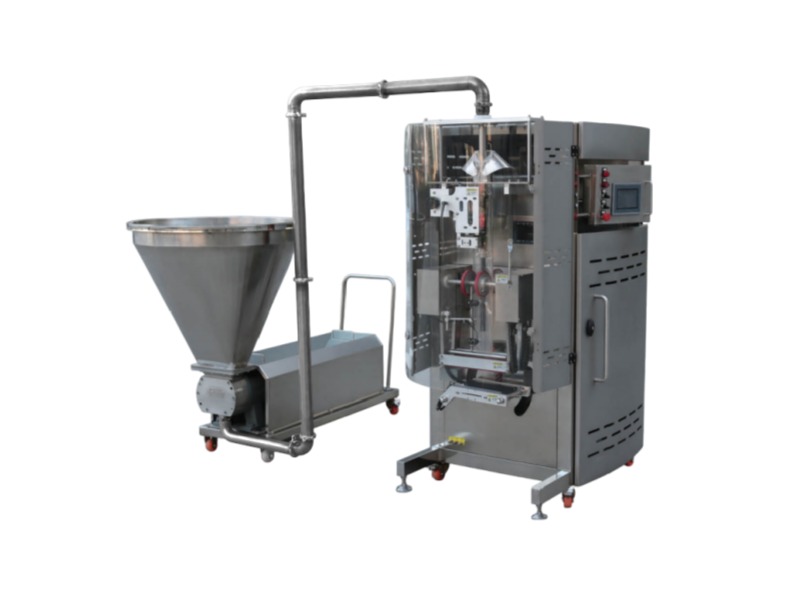

Here we would like to introduce the structure, working principle, feature and technical data, etc of the back-sealing dressings and sauces packaging machine. Hope that it can help you understand this highly efficient packaging equipment suitable for viscous sauces.

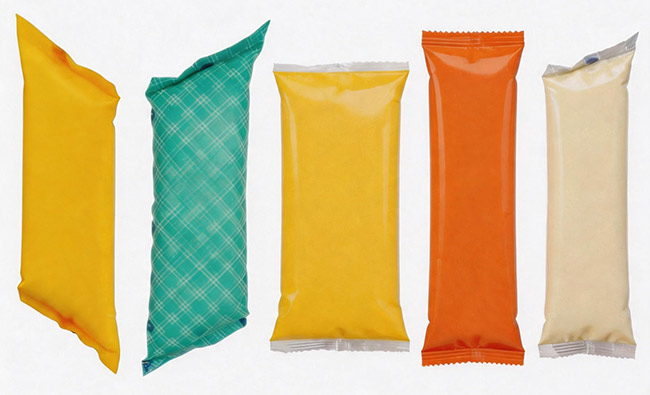

It is a fully automatic dressings and sauces packaging equipment specifically designed for large-capacity soft bag packaging. It uses a roll film bag making and back-sealing method to package salad dressing, mayonnaise, cheese sauce, red bean paste, mung bean paste, and sweet chili sauce into bags. The packaging weight is mainly from 500g to 6kg, meeting both household consumption needs and catering channel applications.
How about the structure and working principle of this type packaging machine? You can kindly read the following explanation.
Module | Function |
Wrap Film Holder | Place packaging film rolls |
Film Pulling Mechanism | Pull packaging film |
Bag Forming Unit | Roll flat film into a cylindrical shape |
Longitudinal Sealing System | Seal the bag longitudinally |
Filling System | Quantitative filling of sauces |
Horizontal Sealing System | Horizontal sealing + cutting |
Coding System | Print production date and batch number |
Control System | PLC touchscreen |
A[Wrap film unwinding] → B[Wrap film pulling and feeding] → C[Bag forming] → D[Longitudinal sealing and back sealing] → E[Bottom horizontal sealing] → F[Rotor pump filling] → G[Top horizontal sealing + cutting] → H[Finished product output]
Following is the working video of the machine:
The key features of this equipment lie in its utilization of a rotor pump as the dosing system, as well as its film-pulling and bag-making system.
For viscous sauces such as salad dressing, mayonnaise, and red bean paste, ordinary metering pumps cannot deliver them stably. This equipment uses a rotary pump as the metering pump, offering the following advantages:
Advantages | Description |
High viscosity adaptability | Handles sauces with viscosity up to 50,000 cP |
Pulsation free delivery | Smooth filling, no splashing |
Particle Capacity | Handle sauces containing fine particles |
Strong Self-Aspiration Capacity | Draw material directly from the lower-level hopper |
Functions | Description |
Servo film pulling | Precisely controls bag length, accuracy ±1mm |
Automatic deviation correction | Ensure accurate sealing position |
Tension control | Maintain film surface flatness, reducing wrinkles |
Quick film change | Convenient roll film replacement, reducing downtime |
Item | Parameter |
Model | SLBF-100 |
Film width | 230-530mm |
Film thickness | 0.08-0.12mm |
Bag size | 200-450mm in length, 128-286mm in width |
Bag type | Back-sealing roll film bag |
Packaging speed | 5-10bpm |
Pack weight | Within 6kg(1kg is the most common specification) |
Power supply | 220V/3kw |
Material Type | Typical Products |
High-viscosity, smooth type | Salad dressing, mayonnaise, |
Micro-particle type | Sweet chili sauce, jam, etc |
Bean paste filling | Red bean paste, mung bean paste, etc |
Above are the introduction to the back-sealing dressings and sauces packaging machine. If your sauces are primarily sold to households and restaurants, you may consider using this type of packaging machine. For more details or to requests for testing, please contact us.
