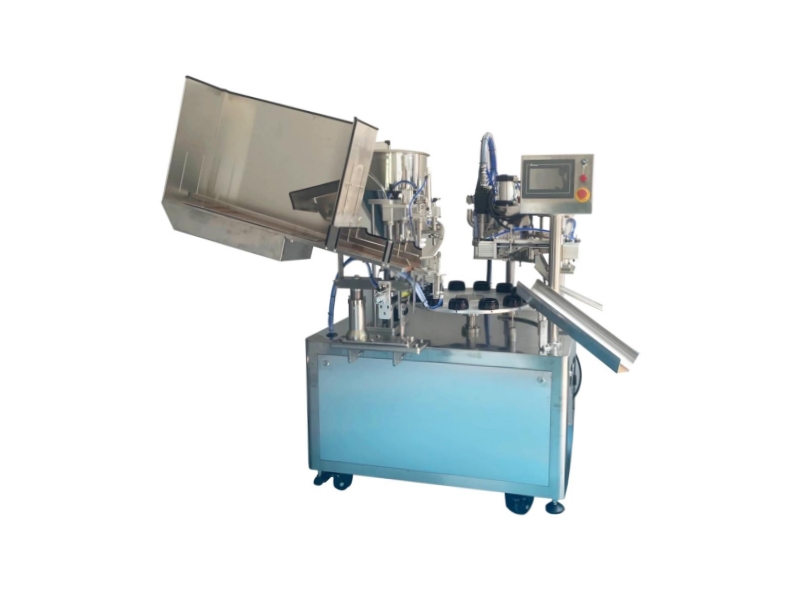

Plastic Tube Filling Sealing Machine

I. Core Application: Focused on the Filling of Creams and Ointments

This series of plastic tube filling and sealing machines is specifically designed for the automated packaging of various pastes and creams. Whether it's condiments in the food sauces or toothpaste, facial cleanser, and hand cream, it can achieve precise, hygienic, and well-sealed filling and sealing.

The machine boasts excellent versatility, adapting to various tube diameters ranging from Φ13mm to Φ50mm. The tubes can be plastic flexible tubing or aluminum-plastic composite tubing. It covers a large-volume filling range from a few grams to hundreds of milliliters, fully meeting your diverse product line packaging needs.

II. Advantages: Multi-Speed Models, Comprehensive Coverage of Different Production Scales

To adapt to the production rhythms of different customer groups, we have designed models with various speed specifications, ensuring that the most suitable solution can be found from startup labs to large-scale industrial production lines:

1)Economical and Practical Model: 8-20 Tubes/Minute

Ideal for small-batch production, new product development, and pilot production lines with low investment costs and high flexibility.

2)Standard High-Efficiency Model: 30-50 Tubes/Minute

Meet the daily capacity needs of small and medium-sized manufacturing enterprises, achieving a perfect balance between efficiency and cost.

3)High-Speed Fully Automatic Model: 55-110 Tubes/Minute

Designed specifically for large-scale production, maximizing capacity and reducing per-tube costs.

III. Key Selection Guide: Three Factors Determine Optimal Configuration

When selecting a specific machine model, your material characteristics, packaging specifications, and production requirements are the core factors determining the equipment configuration. Please pay close attention to the following three points to ensure the machine performs at its best:

1)Material Flowability

Materials with good flowability(such as thin emulsions) have lower filling resistance, resulting in faster filling speeds.

Viscous pastes with poor flowability (such as thick ointments and putties) will significantly affect filling speed. For such materials, we strongly recommend customizing heated mixing hoppers and filling head insulation devices to reduce viscosity through heating, ensuring smooth filling and accurate metering.

2)Packaging Tube Diameter

The machine supports a wide range of tube diameters (Φ13-50mm), but larger tube diameters result in longer single-tube filling times, leading to a corresponding decrease in overall speed.

Important Note: For plastic tubes of different diameters, both the heat-sealing mold and the batch number/date coding mold must be replaced. Please inform us of your commonly used pipe diameter range when ordering so that we can provide corresponding mold configuration suggestions.

3)Single-Tube Filling Volume

Filling volume is primarily controlled by a precision piston cylinder. The larger the filling volume, the longer the piston stroke, and the longer the filling time required, which will have a certain impact on production speed.

Flexible Configuration: If your production plan includes multiple significantly different filling specifications (e.g., both 50g and 150g products), please be sure to inform us of the specific filling volume values when selecting a model. We will assess the situation and configure multiple piston cylinders of different specifications for you to achieve rapid changeover and ensure production flexibility.

IV. In Summary

Choosing the right plastic tube filling and sealing machine is like choosing a reliable packaging partner for your product. We recommend that you provide our sales engineers with your specific material samples, common tube diameters, and filling volume requirements. We will then provide you with the most professional equipment selection and configuration solutions to help you improve packaging efficiency and quality.
