Auto Cup Filling and Sealing Machine High Speed

I. Brief Introduction

High speed auto cup filling and sealing machines are highly automated filling equipment that continuously completes a series of actions, including cup conveying, material filling, and sealing.

Among these machines, linear structures are widely used due to their high efficiency and ease of compliance with modern production standards. They typically have the ability to operate multiple rows of cups simultaneously, greatly improving production efficiency. The filling speed generally ranging from 2000-6000 cups/hour or even higher.

The basic workflow can be summarized as: empty cup loading → filling → filming/capping → heat sealing → finished product output. Some high-end models may also integrate processes such as coding and lid fastening.

II. Features of Linear Cup Filling and Sealing Machine

1)Linear Layout and High Efficiency:

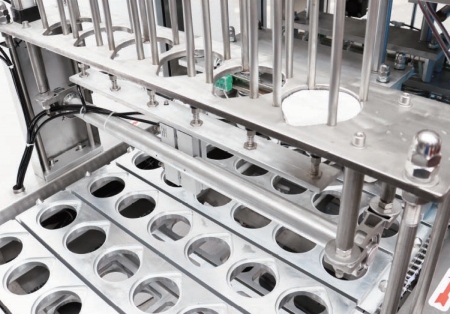

The entire machine and all functional stations are arranged in a linear fashion. Such structure results in a compact structure that effectively reduces equipment width, saves space, and easily integrates into production lines while meeting aseptic laminar flow protection requirements.

2)High Automation and High Precision:

Fully automated operation is achieved from cup dropping, filling, film placement, coding to sealing and cup dispensing. The filling system (e.g., piston type) achieves high-precision quantitative filling with an accuracy of ±1%, effectively reducing waste.

3)Flexible Configuration and Strong Adaptability:

Different filling systems (e.g., gravity flow, piston, screw type) can be selected according to product requirements to adapt to various material forms, including liquids, pastes, granular materials, and even powders. By changing molds and adjusting parameters, it can also adapt to cups of different materials (e.g., PS, PP, PET) and sizes.

III. Common Optional Functional System

To better meet specific production needs, the following optional equipment can be considered:

1)Identification and Traceability System:

Print production date, batch number, and other information on the sealing film.

2)Hygiene and Sterilization System:

It includes UV germicidal lamps to sterilize the inside of empty cups. Some models can also be equipped with a CIP automatic cleaning system for convenient internal cleaning.

3)Capping and Sealing System:

For products requiring additional protection or specific packaging forms (such as yogurt cups with lids), an automatic capping and sealing system can be provided.

4)Other Functional Modules:

Such as a dynamic granule/flavor mixing system, an automatic hopper level control system, etc.

IV. Wide Range of Applications

High-speed auto cup filling and sealing machines have wide applications in multiple industries:

1)Condiment and sauce industry: chocolate sauce, sweet bean sauce, seasoning sauce, ketchup, and hot sauce, etc.

2)Dairy and beverage industry: yogurt (low-temperature yogurt, room-temperature yogurt), fresh milk, flavored milk, juice, pudding, and jelly.

3)Daily chemical and pharmaceutical industry: shampoo, shower gel, skin care products, toothpaste, ointment, and oral liquids, etc.

4)Other specialty industries: pet food, honey, drinking water, oils, and adhesives, etc.
