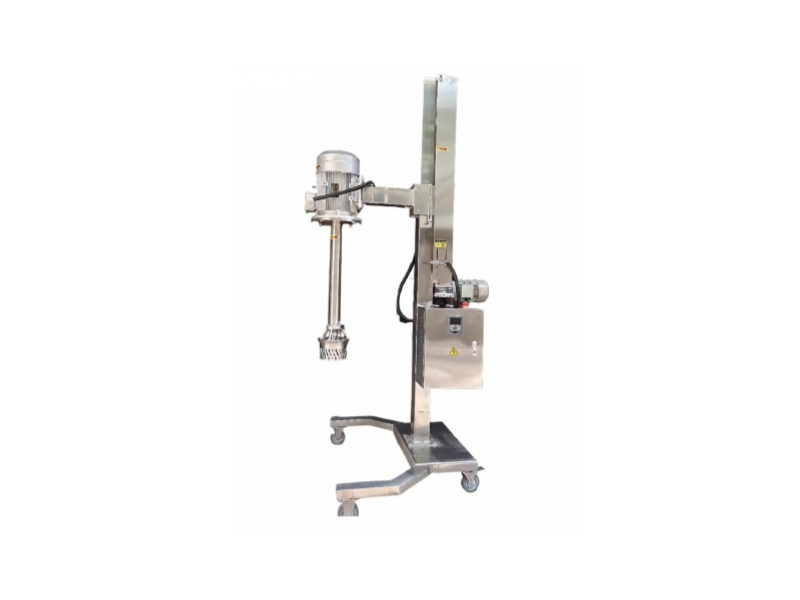

High Shear Batch Mixer

Our SLH series high shear batch mixer is mainly for liquid-liquid emulsification, solid-liquid dispersion, powder-liquid mixing, and cell tissue disruption, pursuing uniform composition and system stability. It is widely used for the food, cosmetic, pharmaceutical, and cosmetic industries for powder liquid mixing and homogenizing use to make cream/ointment products.

I. How Does the Batch Mixer Work

The turbine formed by the high speed running rotor-stator or the dispersion plate creates a microscopically uniform and powerful flow field.

Continuous dispersion or homogenization achieves uniform mixing at both the macroscopic and microscopic levels.

The process operates on a batch basis, ensuring consistency in the processing of each batch of materials and allowing for flexible conversion between multiple formulations. You can watch the following high mixer working video to know more.

II. How Many Types of Working Heads

Round-hole stator head: Offers optimal circulation capacity. Suitable for medium to high viscosity materials, initial crushing of large particles, and suspension and dissolution of solids in liquids.

Long-hole stator head: Provides a larger shear area, balancing good circulation and shearing capabilities. Suitable for rapid crushing and emulsification of medium viscosity materials.

Claw-type homogenizing head: Features a slanted tooth meshing design for strong shearing force. Provides bidirectional material suction, avoiding dead zones in mixing. Suitable for processes requiring efficient emulsification, homogenization, and dispersion, such as food sauces.

Dispersion disc/impeller: Primarily generates strong tangential liquid flow and centrifugal force to achieve macroscopic mixing and suspension. Suitable for mixing medium to low viscosity materials, dispersing solids, and preventing sedimentation.

III. Why Choose Salinovate High Shear Batch Mixer

Reliable Materials: The main parts of the high shear batch mixer are made of SS304, and can be upgraded to SS316L upon customer request.

Precision Machining: Every processing step in the mixer production process strictly adheres to industry standards. Experienced machining technicians conduct rigorous supervision and inspection to ensure the precision manufacturing of each piece of equipment.

Customized Design: We support customized designs, including mixer functional and aesthetic designs. Please contact us if needed.

Wide Range of Models: From small to large capacity processing, we have corresponding batch mixer models.

IV. Technical Sheet
