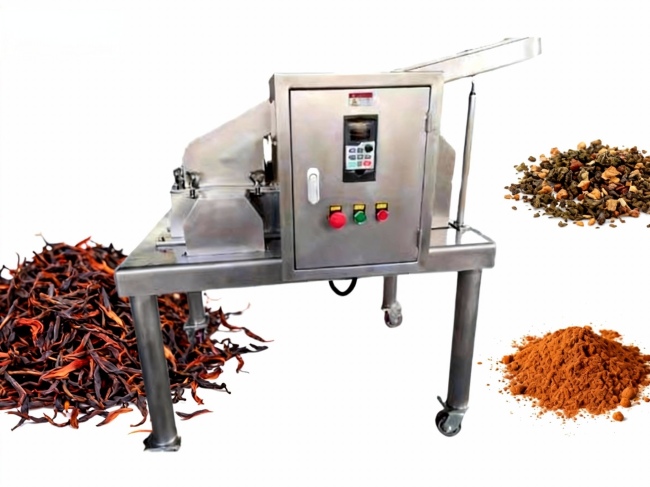

Tea Leaf Grinder Machine for Powder and Granules

I. Background of Tea Leaf Grinder

Why you need tea leaf grinder machine? This type grinder machine can grind tea leaf into powder or granules, satisfying the diverse production need of the tea company. You can learn more by the following introduction of the grinder.

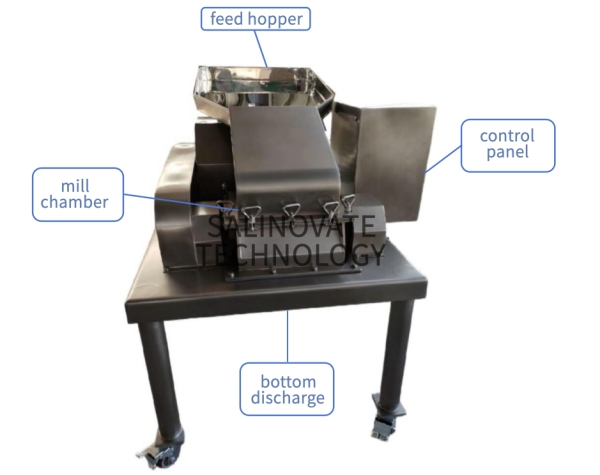

II. Structure of Leaf Grinder

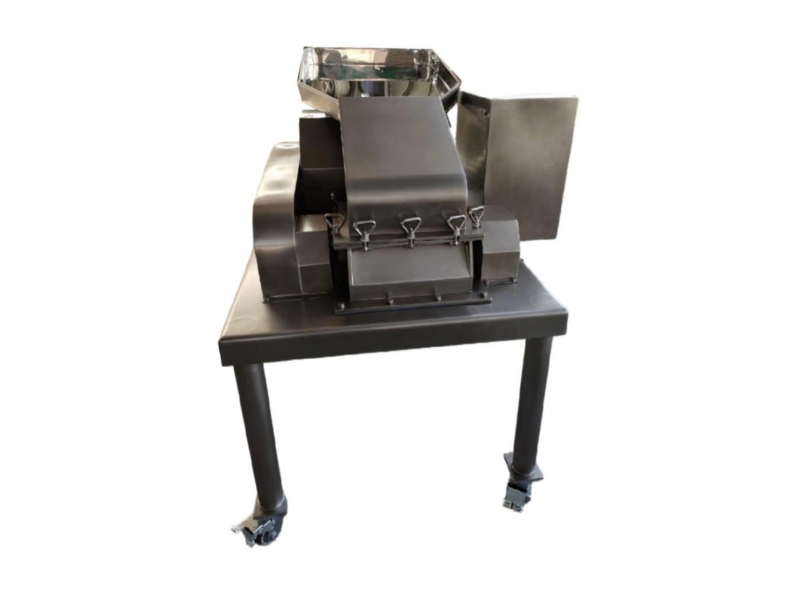

The grinder machine consists of the feeding hopper, mill chamber, discharge port, control panel and the steel support. The feeding hopper is sliding design, the tea leaves are very easy to slide in the grinding chamber.

Inside the mill chamber, there are grinding cutters and the fixed plate. The sieve is at the bottom of the cutters to help control the output size.

III. Work Flow of the Leaf Grinder

Firstly, please power on the machine. For the industrial production use grinder machine, 3P voltage is a must. Secondly, press the start button and grind button. Put the dry tea leaves or other dry leaves into the feed hopper, the leaves will come into leaf grinding machine chamber. The rotary cutters will cut the leaves into powder granules.

For the tea beverage use, usually coarse granules are enough. We suggest to put around 8mm hole size sieve into the mill chamber. For baking use or flavoring use, you can put 0.4mm hole size sieve inside for making leaf powder. Certainly, welcome to tell us the specific granule size range you need. It helps us to pick up the most suitable hole size sieves for you.

For such type leaf grinding machine, usually we use cloth bag to collect the leaf powder granules.

IV. Working Performance

The performance of the black leaf grinder differs based on the configuration.

1)Hammer type cutter plus fine hole size sieve

Such combination brings you fine leaf powder, the size range is about 40mesh to 80mesh.

2)Knife type cutter plus coarse hole size sieve

If coarse powder granules are enough for you, you can tell us and we basically make such combination for you.

3)Knife type cutter, frequency converter, and coarse hole size sieve

When you need the leaf to be very coarse granules without too many powder granules, we will add the frequency converter to lower the grinding speed.

V. Conclusion

As you can see, the leaf grinder machine is customized. You can give us more details then we can have a right recommend:

1)What leaf to grind?

2)What final performance you need? You can give us a size range or show us a video.

3)The required production capacity(kg/h).

Welcome your contact if you need our tea leaf grinder machine.
