Industrial Fruit Cutting Machines

I. 3D Fruit Cutting Machine: Precise Fruit Cutting

Uniformly shaped cubes of fruit can enhance product appearance during the fruit processing. Our industrial fruit cutting machines can achieve such results.

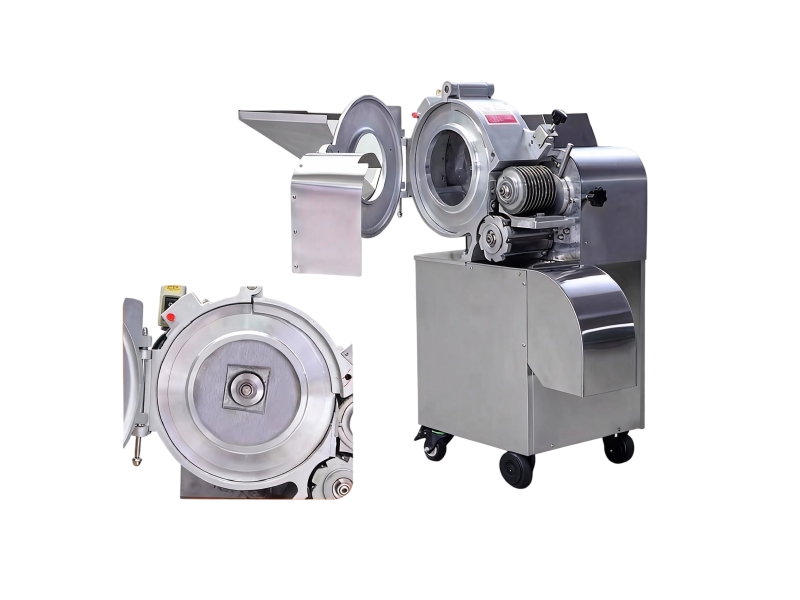

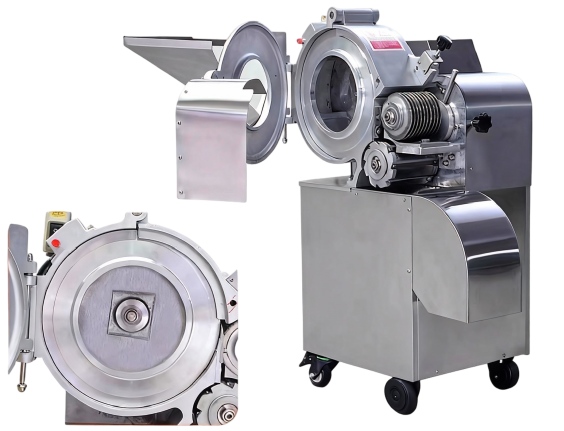

Employing advanced 3D cutting technology, our SLTC series industrial 3D cutting machine is capable of completing slicing, shredding, and dicing of fruit in a single operation. This greatly improves production efficiency and ensuring consistent cutting quality.

II. What Is A 3D Cutting Machine

This is an industrial cutting grinder machine specifically designed for fruit chopping. It can process whole fruits and vegetables into regular cubes or cuboids in a single, continuous operation.

This machine is widely used for dicing food ingredients such as apples, peaches, pumpkins, strawberries, pineapples, radishes, and onions.

Unlike traditional cutting equipment, the 3D dicing machine uses a centrifugal cutting principle. It is fed by a rotating propeller, slices the fruit using centrifugal cutting, then shreds it using a disc grid blade, and finally completes the dicing process with dicing strips.

III. Working Principle

The working process of a 3D dicing machine is based on three precisely coordinated steps that transform the whole material into regular cubes:

1)Slicing Stage

The fruit is fed into the centrifugal cutting drum via a rotating propeller, adhering tightly to the inner wall of the drum under centrifugal force.

When the material rotates with the drum to the position of the fixed slicing blade, it is cut into uniform slices. The slice thickness can be adjusted as needed.

2)Shredding Stage

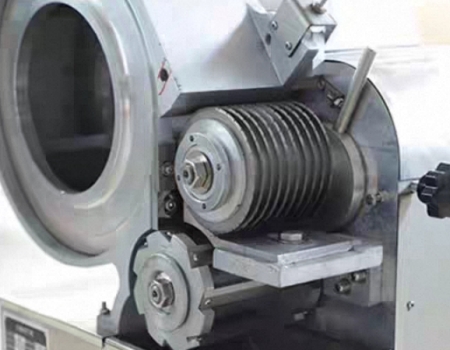

The sliced fruit continues to move with the drum to the disc grid blade area. The disc grid blade consists of a series of parallel disc blades, cutting the sliced material into strips. The cross-sectional size of the strips depends on the spacing between the disc blades.

3)Dicing Stage

The strips of fruit finally enter the dicing stage, where high-speed rotating cross-cutting blades cut the fruit strips into regular cubes. The rotation speed of the cross-cutting blades needs to be precisely matched with the rotation speed of the disc blades to ensure that the cut cubes are regular and neat.

IV. Key Technological Advantages

High-Efficiency Production: 3D dicing machines can continuously process large quantities of fruit raw materials.

Stable Cutting Quality: By precisely controlling the speed ratio between the centrifugal cutting drum and the dicing blades, 3D dicing machines ensure that the cut fruit cubes are uniform in shape and size.

High Adaptability: 3D dicing machines can adapt to different cutting specifications by adjusting the slicing thickness and changing the disc slicing blades and cross-cutting blades. This flexibility allows a single machine to meet the production requirements of multiple product specifications, improving equipment utilization.

V. The Industrial Application Value

In industrialized fruit processing, 3D dicing machines(fruit cutting machine) offer multifaceted value:

1)Enhancing Product Added Value

Neat, regular fruit cubes are not only visually appealing but also meet the standardized raw material requirements of the high-end catering market. Standardized cutting results in better presentation and consistency in baked goods, salads, canned goods, and other products.

2)Reducing Labor Costs

Traditional manual dicing methods are not only inefficient but also face challenges such as rising labor costs and low staff stability.
